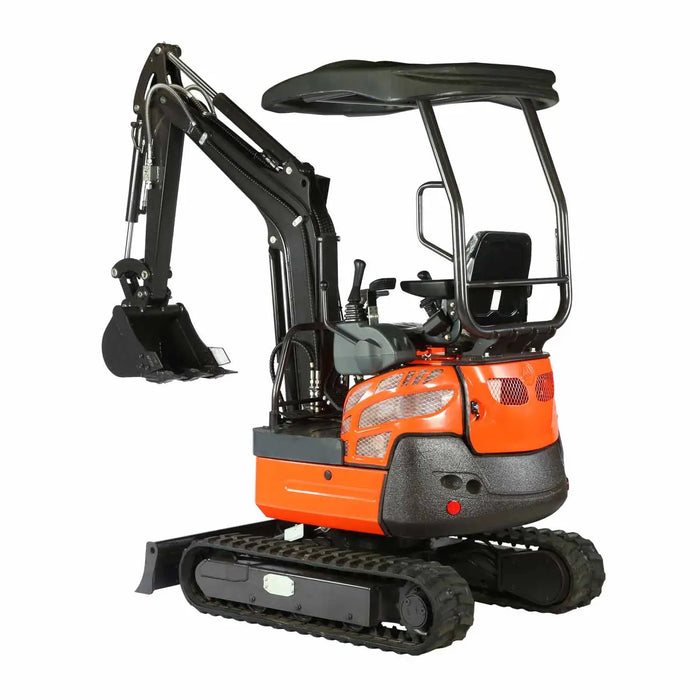

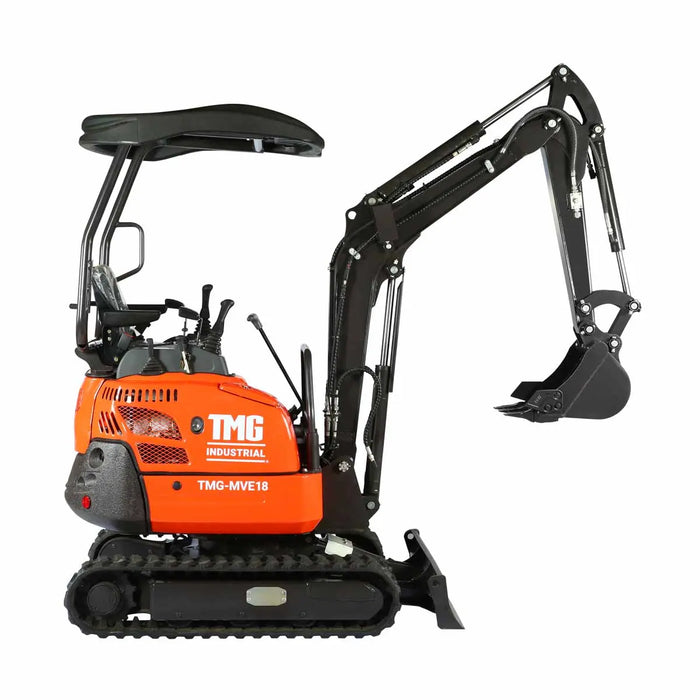

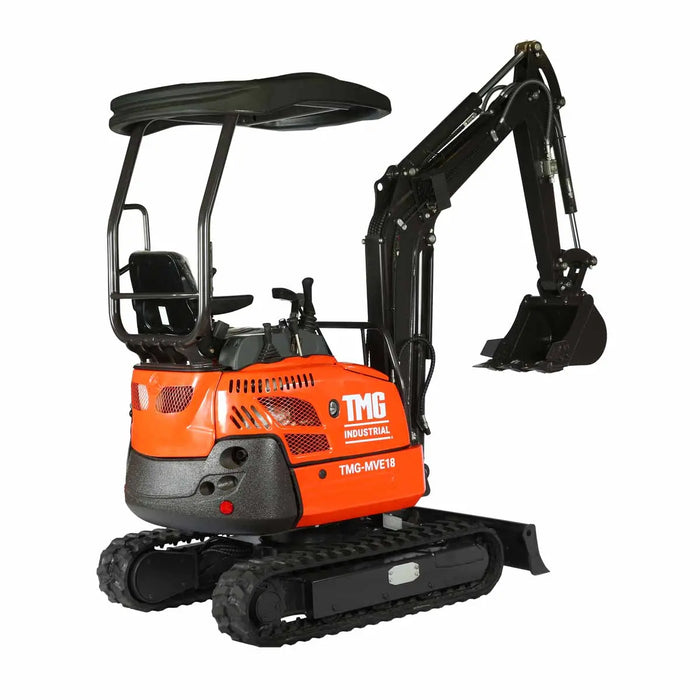

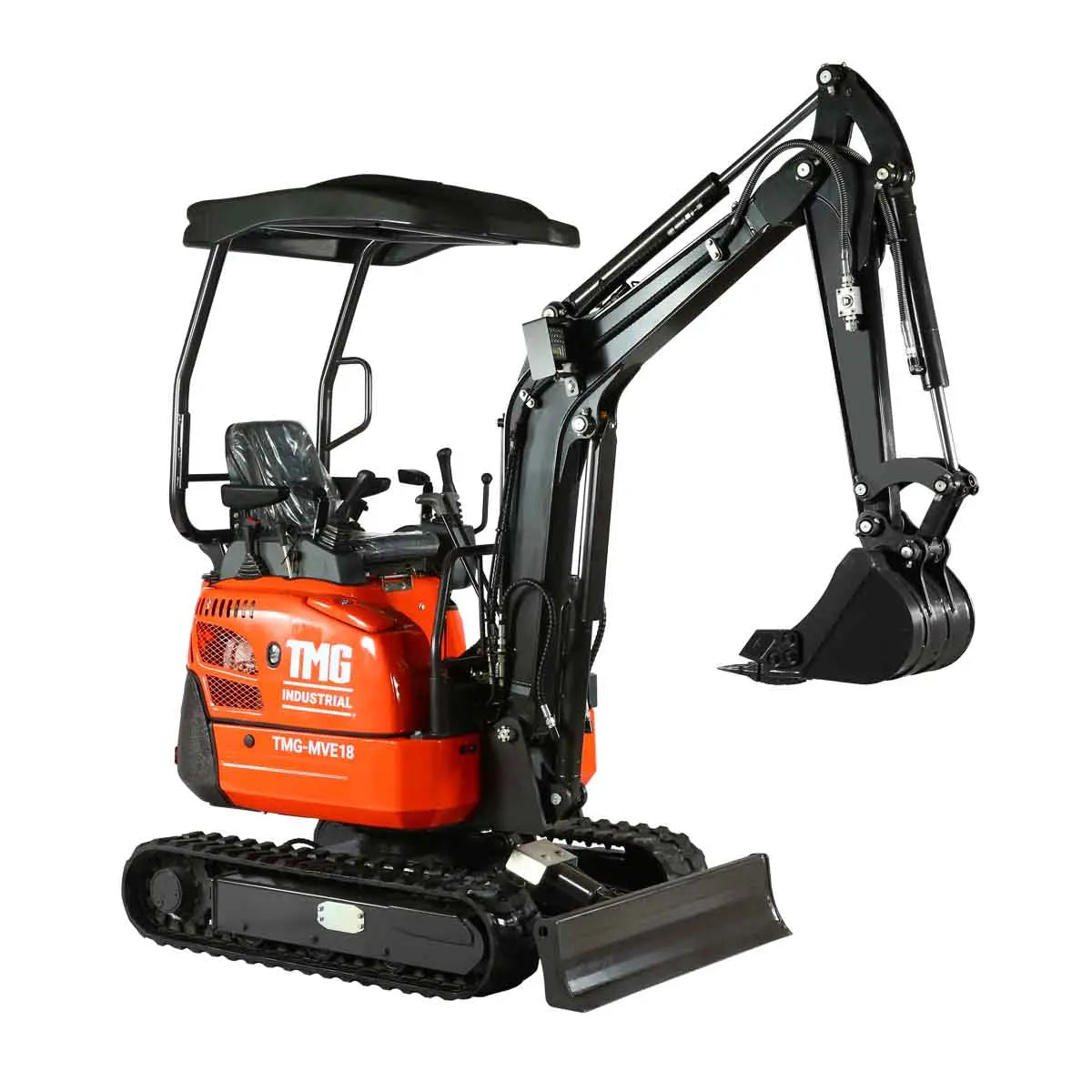

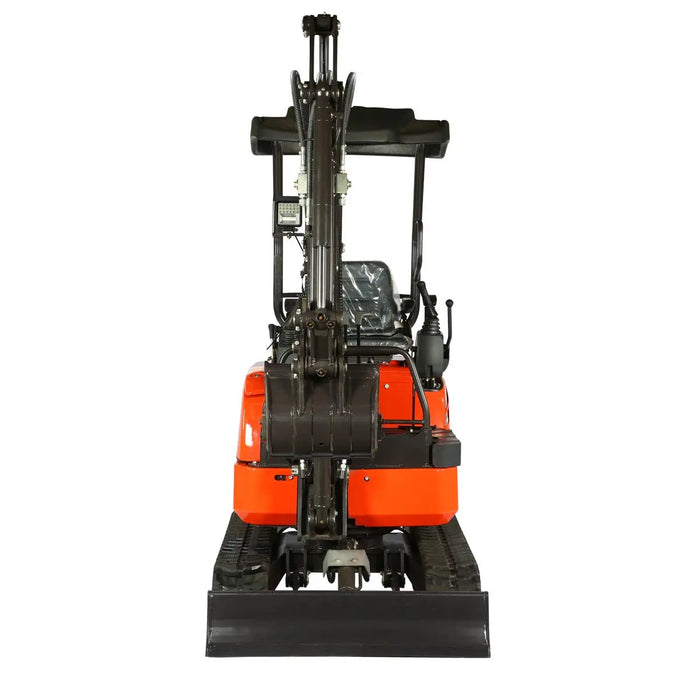

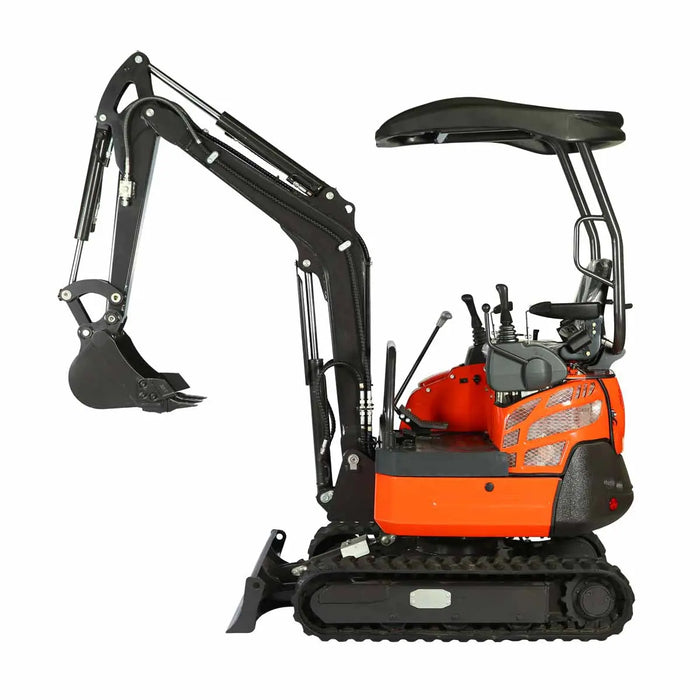

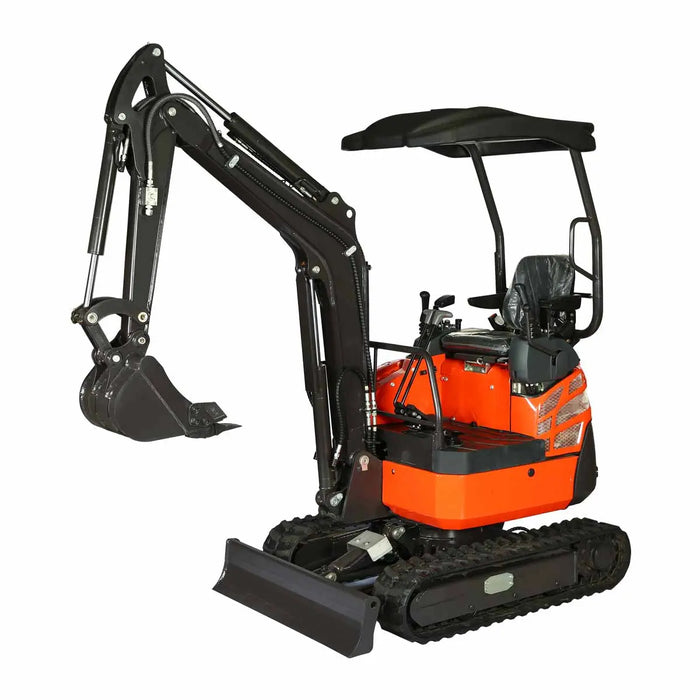

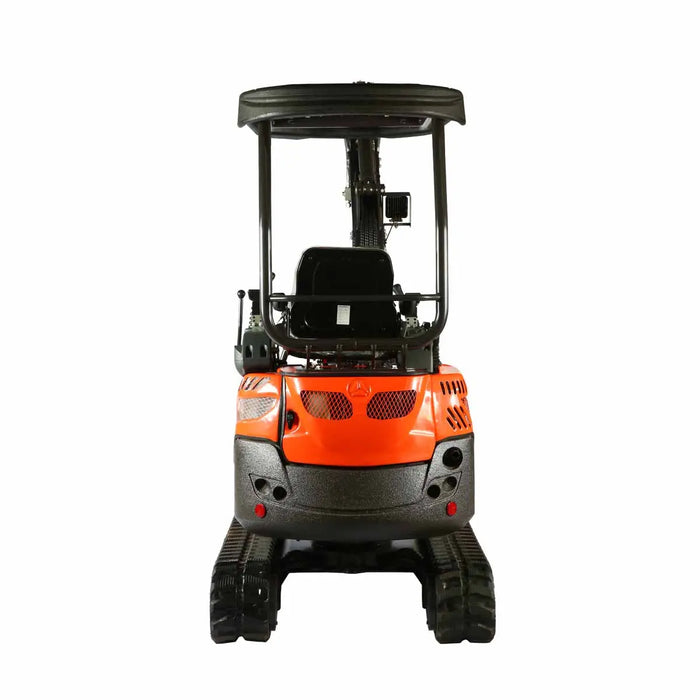

TMG Industrial 1800 KG Mini Compact Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 85” Digging Depth, Joystick Control, TMG-MVE18

• 16 HP Kubota 3-cycle water-cooled diesel engine, ensures a potent combination of reliable performance and fuel efficiency
• KDK hydraulic main pump and Eaton motor work together to ensure smooth and precise operation, minimizing downtime and maximizing productivity
• With unmatched adaptability, this excavator offers unparalleled maneuverability in confined spaces, allowing operators to navigate tight job sites with ease

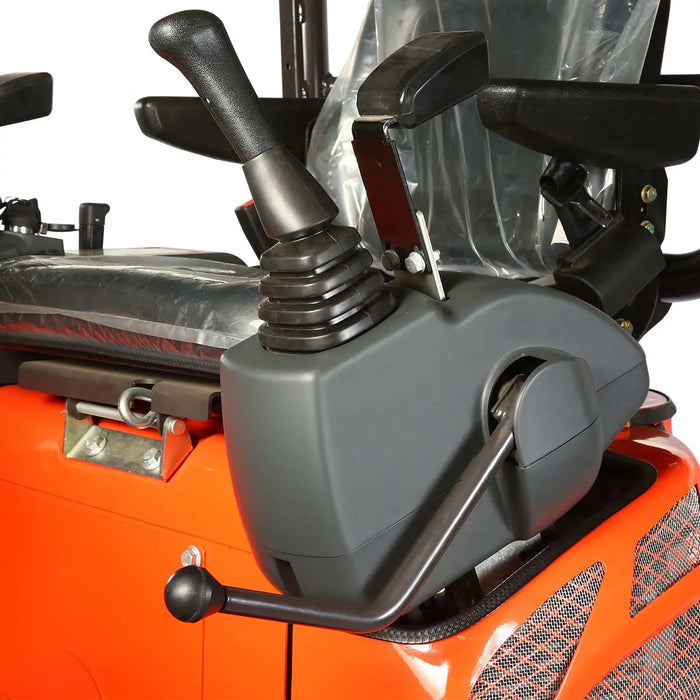

• A joystick control design offers ergonomic advantages by allowing operators to manipulate controls without having to reach too far or strain their posture
• Standard auxiliary hydraulics open up a world of possibilities, empowering users to easily attach a variety of tools and attachments for different uses
• Two travel speed options: 1.7/2.2 km/h, maximum digging depth of 85”, and a maximum unloading height of 91” to accommodate a wide variety of tasks
• The unmatched adaptability also offers a high level of protection against jobsite obstacles, providing safety to both operator and machine

• Operating weight: 4200 lb

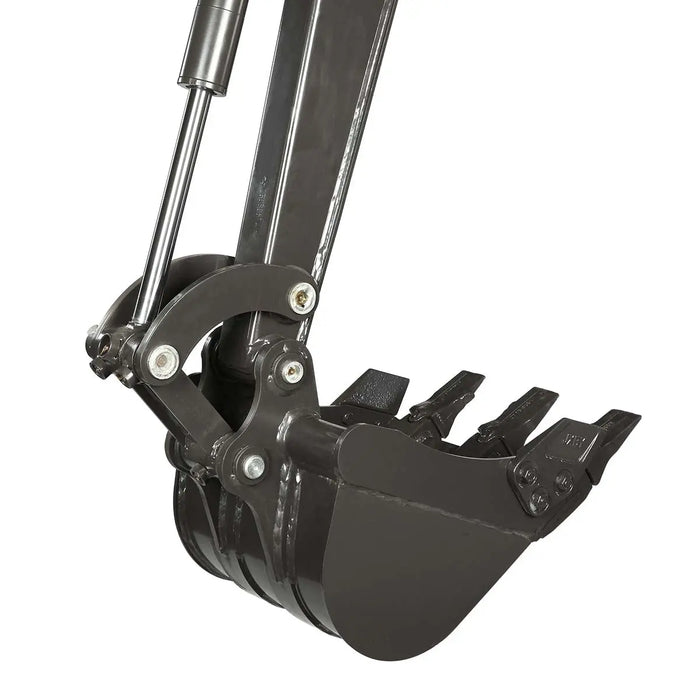

• Standard bucket capacity: 1.6 cu-ft
• Working device form: Backhoe
• Two travel speed options: 1.7/2.2 km/h
• Swing speed: 11 RPM
• Max. gradeability: 30°
• Track ground pressure: 40 kpa
• Hydraulic oil tank capacity: 15 L
• Fuel tank capacity: 19 L
• Max. tractive force: 13.5 kN

Operating Range

• Max. digging depth: 86”
• Overall operating height (fully raised): 127”
• Max. digging radius: 141”
• Max. unloading height: 91”
• Max. vertical digging depth: 70”
• Min. turning radius: 57”
• Max. lifting height dozer blade: 11”
• Max. depth dozer blade: 8”
• Boom swing-left: 50°
• Boom swing-right: 55°
• Dipper boom digging force 6.5 kN
• Bucket digging force 10.5 kN

Main Dimensions

• Track length: 63”
• Upper chassis ground clearance: 19”
• Counterweight turning radius: 31”
• Chassis width: 49”
• Track width: 9”
• Track height: 14”
• Transportation length: 134”
• Height of seat to ground: 65”
• Overall height: 94”

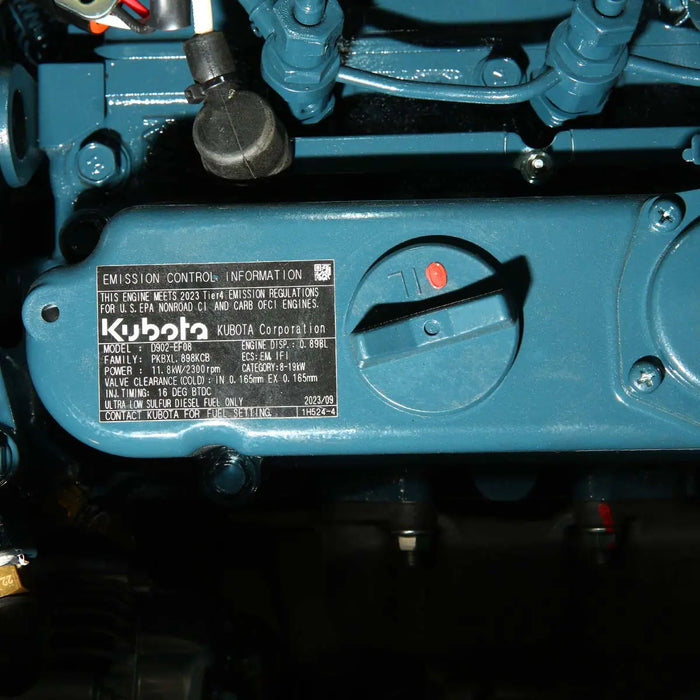

Engine

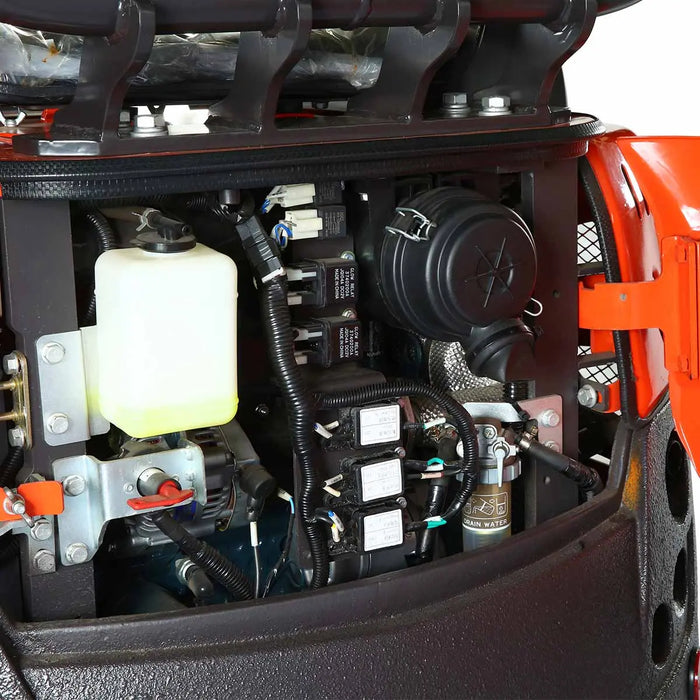

• Powerful 16 HP Kubota 3-cycle water-cooled diesel engine
• Displacement: 0.898 L
• Start type: Electric start w/battery included (12V/20A)
• Rated power: 16 HP/2300 RPM
• Max. torque: 51.3N.m
• Engine oil capacity: 15.3 L

The order will ship from one of our warehouses in Canada or the United States Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

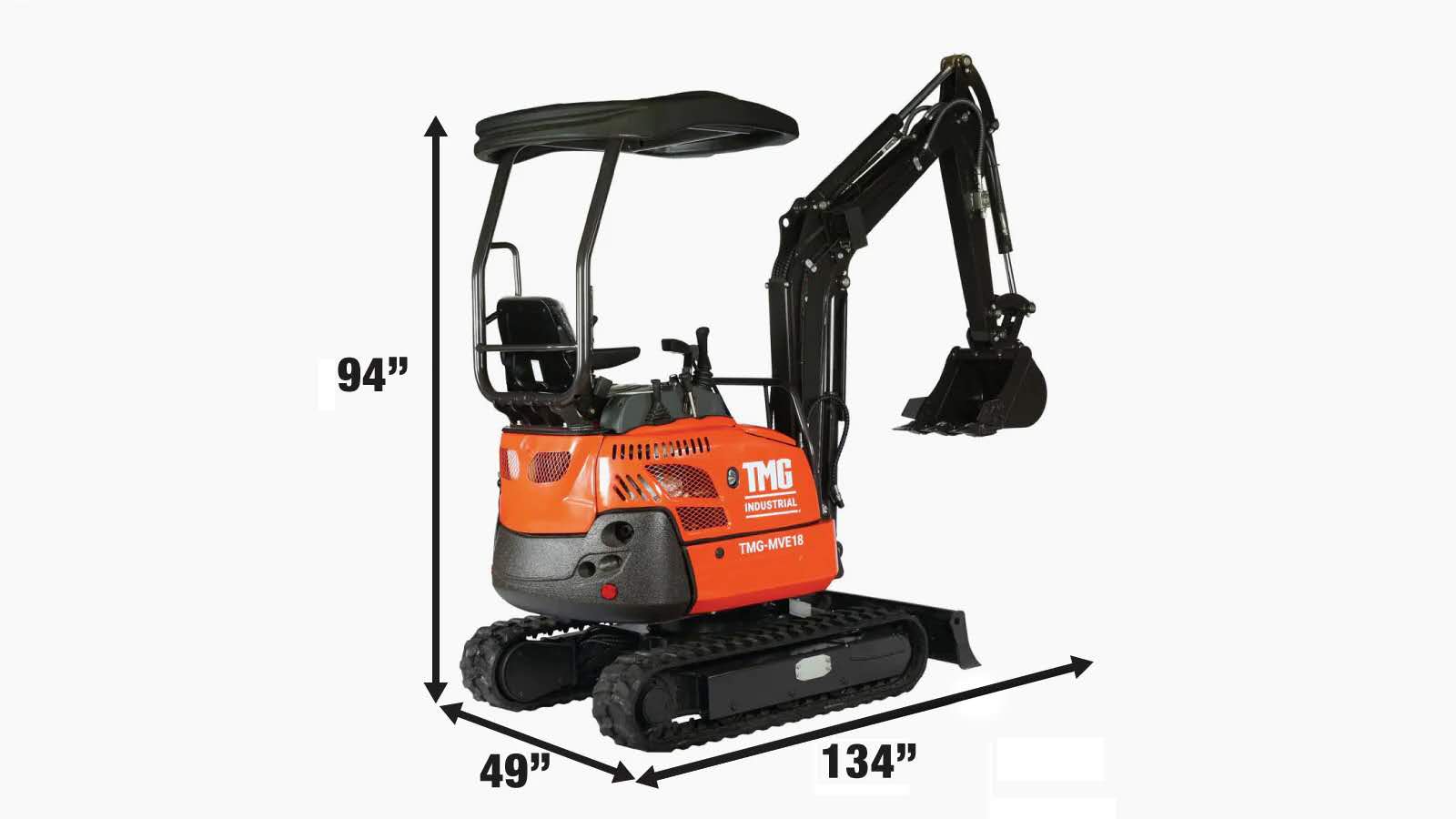

• Shipping dimension: 94” x 49” x 134” (L x W x H)
• Shipping weight: 4260 lb
