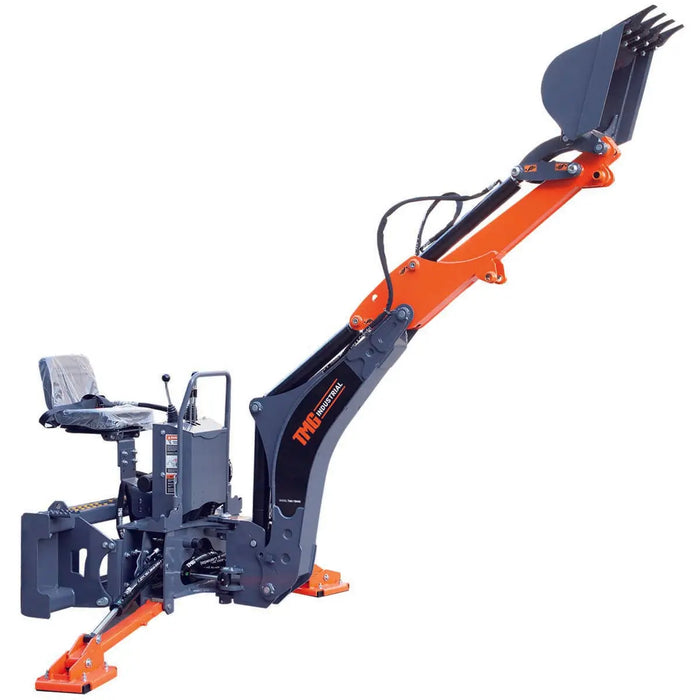

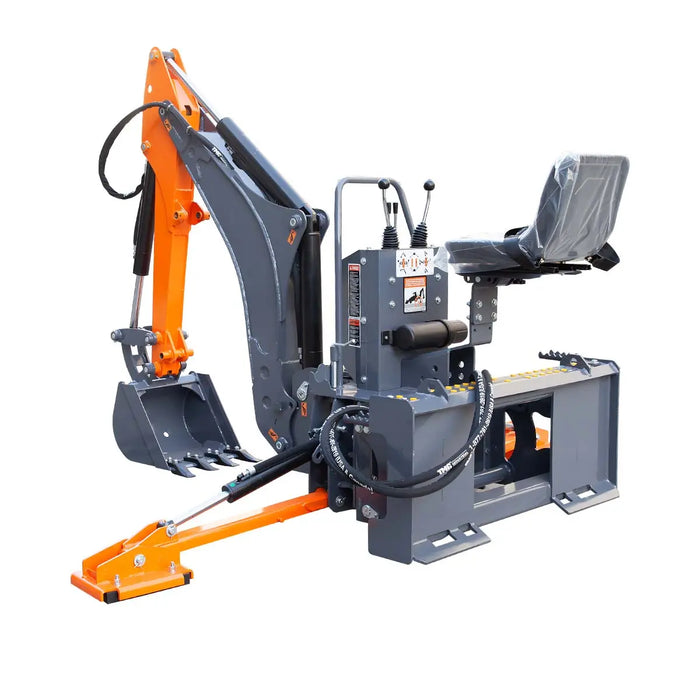

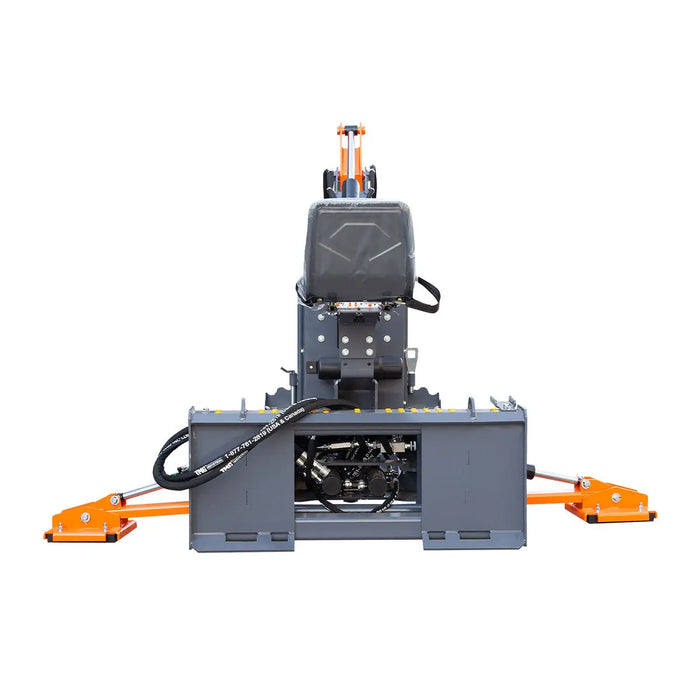

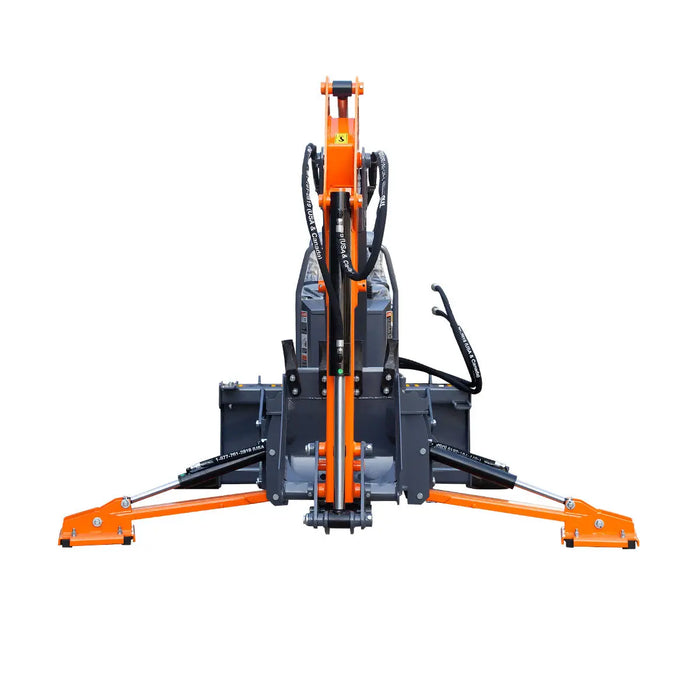

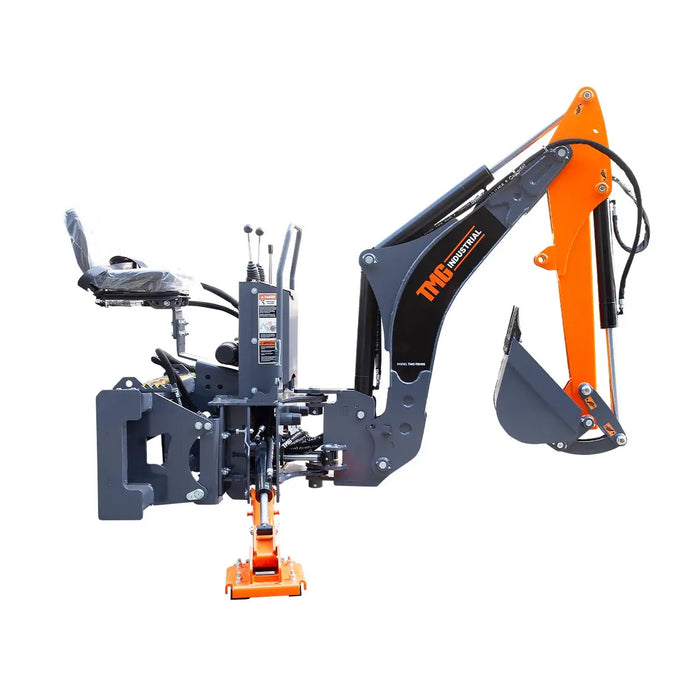

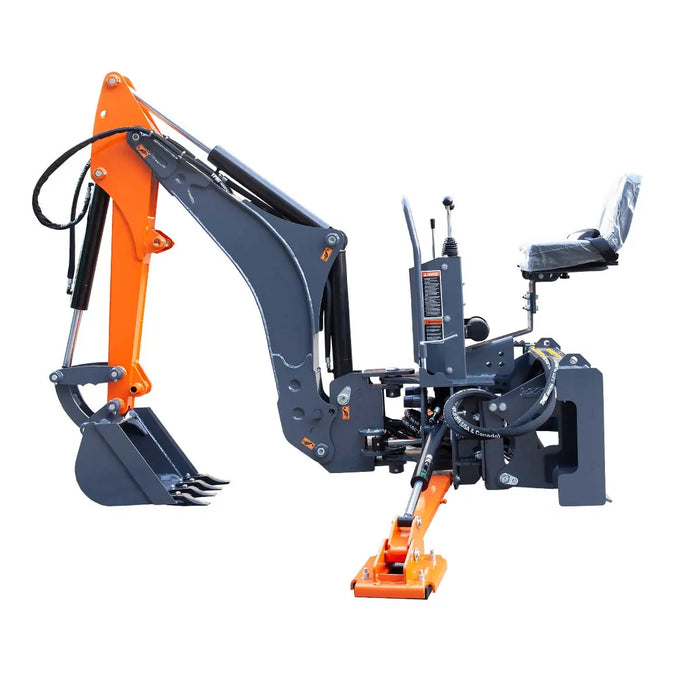

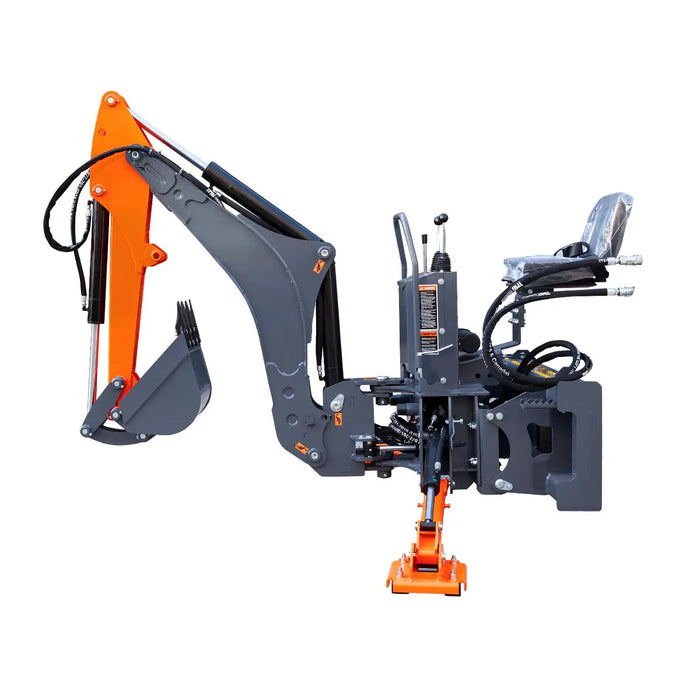

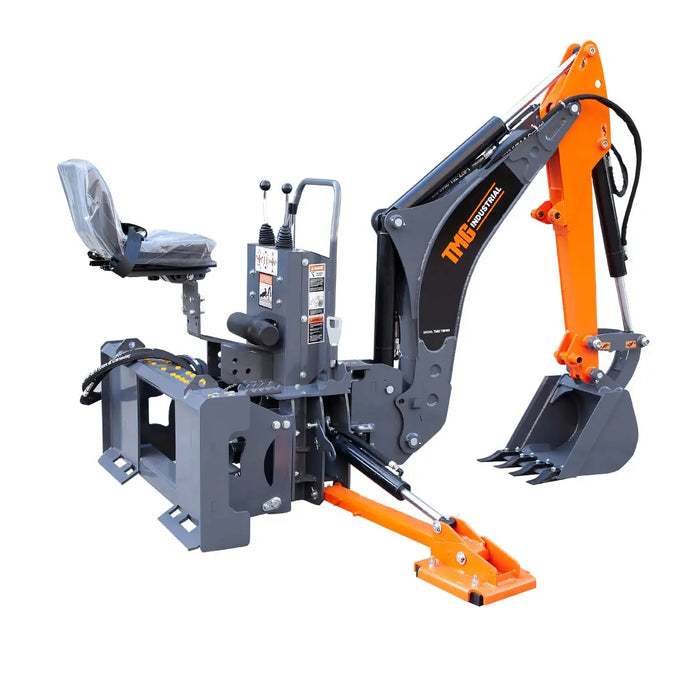

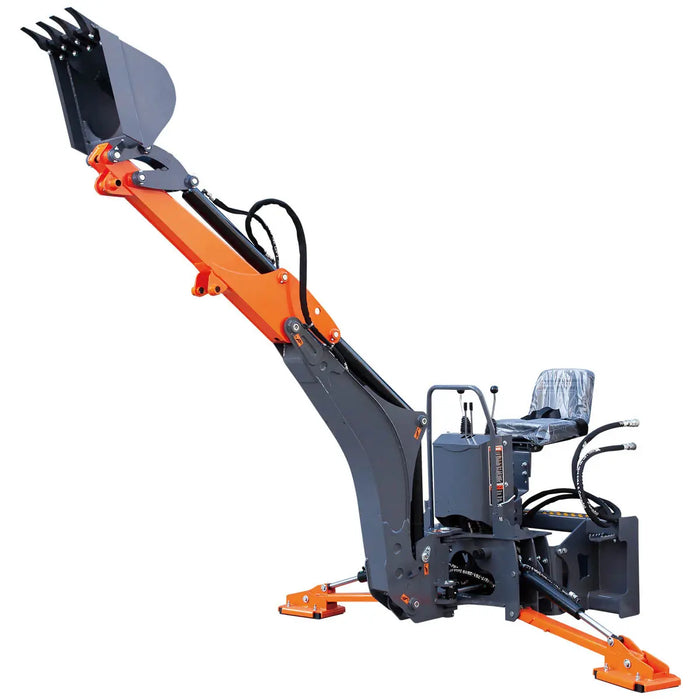

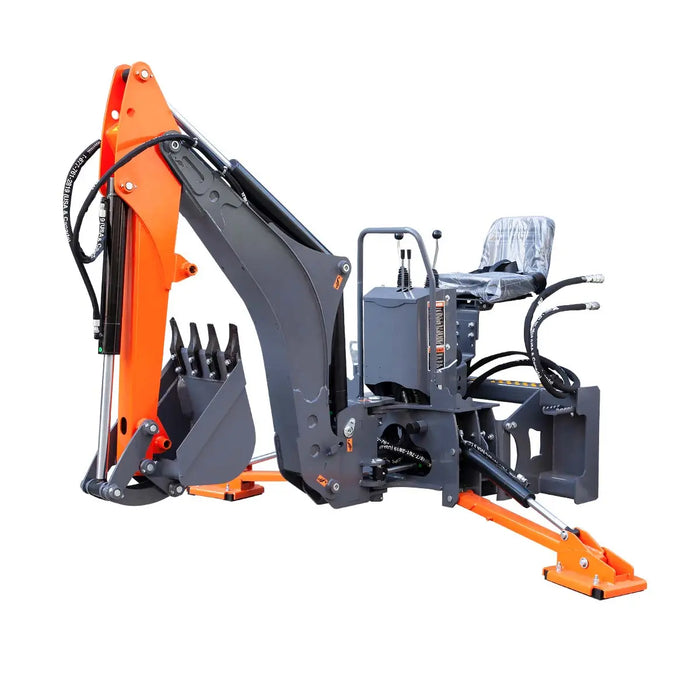

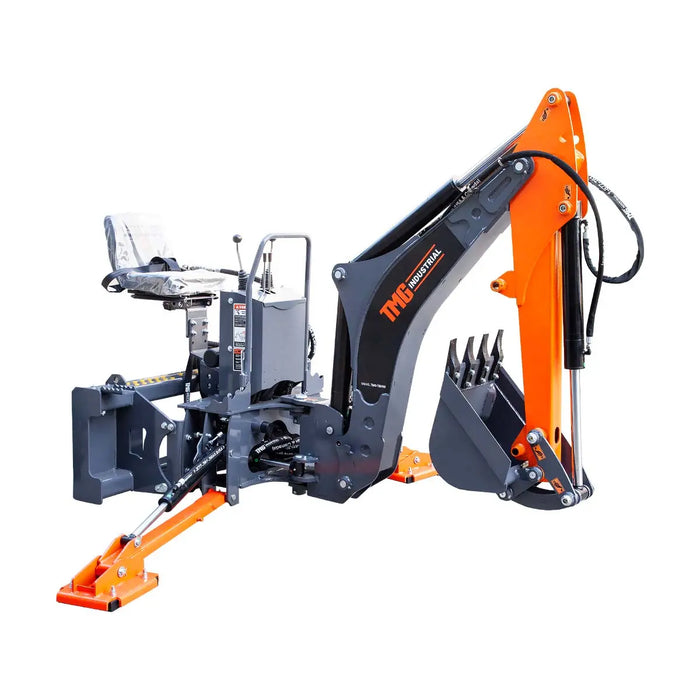

TMG Industrial 9-ft Skid Steer Swing Backhoe Attachment, 180° Boom Swing and Bucket Rotation, 15” Bucket, TMG-SBH60
SKU TMG-SBH60

TMG Industrial 9-ft Skid Steer Swing Backhoe Attachment, 180° Boom Swing and Bucket Rotation, 15” Bucket, TMG-SBH60

$6,999.00
$6,999.00 - $6,999.00
$6,999.00
$6,499.00
$6,499.00 - $6,499.00
$6,499.00
Save $500.00 Save $500.00 CURRENTLY IN STOCK
FREE SHIPPING TO MOST LOCATIONS IN THE USA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
Only 1 left in stock

Other financial option:

1425.0 lb
89 x 29 x 49 inches
More Shipping Info
1-877-761-2819
  • Compatible w/30-100 HP skid steers, 9'6" digging depth
  • 180° of boom swing & 180° of bucket rotation
  • 15” digging bucket & rubber padded stabilizer legs
  • Designed for high breakout force & burrowing power
  • Replaceable bolt-on cast teeth and included flat face hydraulic couplers
More Information
Product Manual
Find Parts
Features Specs Shipping Info Description Warranty Reviews

Features

  • Extensive reach capacity in all directions with 180° of boom swing and 9'6" of digging depth so you can access hard-to-reach areas without moving your setup
  • Compatible with 30-100 HP skid steers and comes with a 15” digging bucket, perfect for digging trenches, installing irrigation systems, landscaping and more

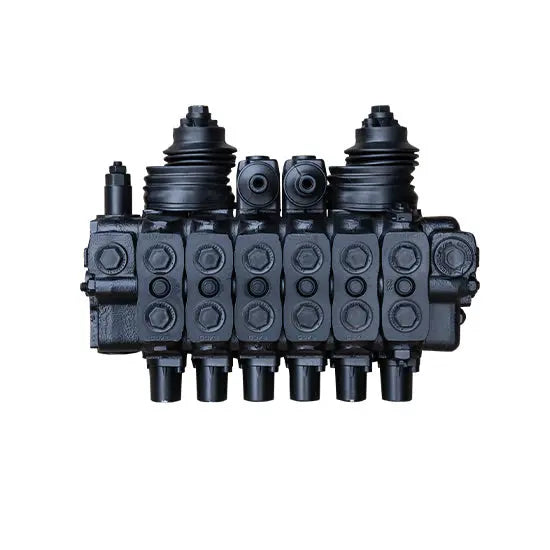

  • Built with Italian Hydro Control valves that optimize the distribution of hydraulic pressure for precise timing and performance
  • Dual hydraulic cylinder arm and bucket linkage are well-gusseted to withstand high levels of breakout force and burrowing power
  • Replaceable bushings, replaceable bolt-on cast teeth and grease fittings on all pivot points make maintenance simple, cost-effective and easy to do
  • Stabilizer legs have been fitted with removable/replaceable rubber street pads that cushion the ground and prevent damage to supporting surfaces
TMG Industrial 9-ft Skid Steer Swing Backhoe Attachment, 180° Boom Swing and Bucket Rotation, 15” Bucket, TMG-SBH60-description-image

Specifications

  • Digging depth (2 ft. flat bottom): 9'6"
  • Overall operating height(fully raised): 123”
  • Reach from swing post: 129”
  • Loading height (bucket at 60° rotation): 84”
  • Dipper boom digging force: 2200 lb
  • Bucket digging force: 3300 lb
  • Transport height (with boom fully retracted): 80”
  • Transport width (with stabilizers up): 58”
  • Transport length: 72”
  • Transport weight (base unit only-no bucket or mounts): 870 lb
  • Bucket rotation: 180°
  • Swing arc: 180°
  • Stabilizer width (spread): 88
  • Stabilizer width (transport): 58
  • Operating pressure: 2320 PSI
  • Hydraulic volume requirements: 5-7 GPM
  • Recommended skid steer requirements (SSQT): 30-100 HP
  • Flow divider included: Yes
  • Bucket sizes available: 15”
TMG Industrial 9-ft Skid Steer Swing Backhoe Attachment, 180° Boom Swing and Bucket Rotation, 15” Bucket, TMG-SBH60-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 89” x 29” x 49” (L x W x H)
  • Shipping weight: 1425 lb
Shipping from one of our warehouses in the United States
What happens after you place your order?
TMG Industrial 9-ft Skid Steer Swing Backhoe Attachment, 180° Boom Swing and Bucket Rotation, 15” Bucket, TMG-SBH60-shipping-info-image

Product Description

The TMG-SBH60 9-ft Skid Steer Swing Backhoe Attachment offers a range of capabilities for your excavation projects. Its extensive reach and 180° boom swing allows you to access hard-to-reach areas without needing to reposition the attachment. This backhoe attachment is compatible with skid steers between 30 and 100 HP and comes with a 15” digging bucket that is perfect for digging trenches, installing irrigation systems, landscaping and more.

This backhoe features Italian Hydro Control valves that optimize the distribution of hydraulic pressure for precise timing and performance. The dual hydraulic cylinder arm and bucket linkage are designed for high breakout force and burrowing power and allow for 180° of bucket rotation.

Maintenance is made easy with replaceable bushings, replaceable bolt-on cast teeth, and grease fittings on all pivot points. The stabilizer legs are designed with removable/replaceable rubber street pads to prevent damage to lawns, blacktop and concrete.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
