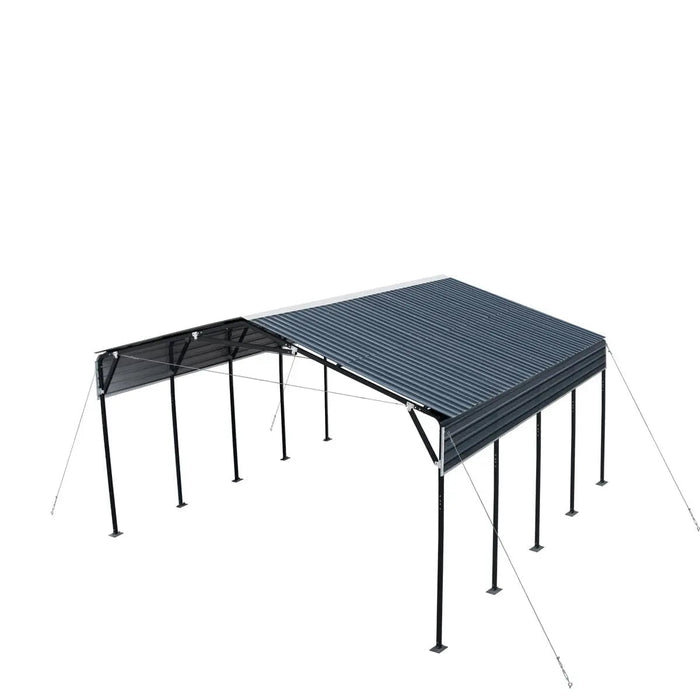

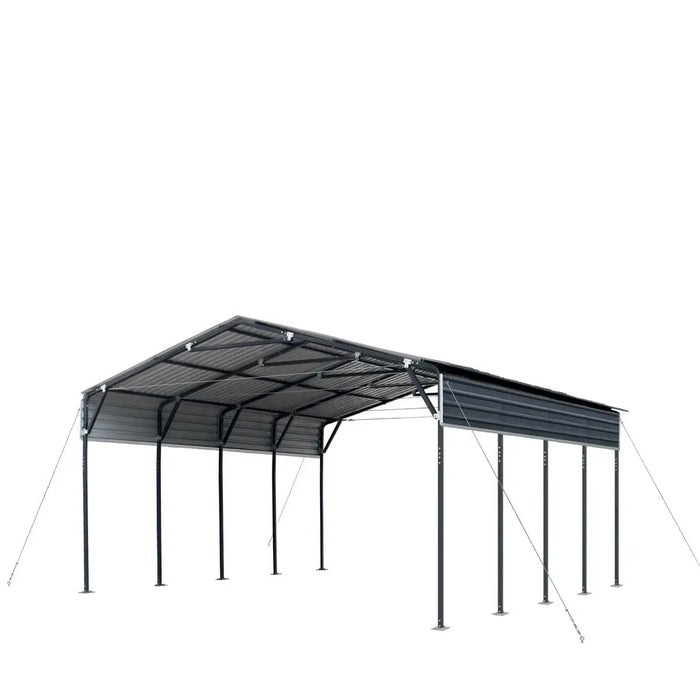

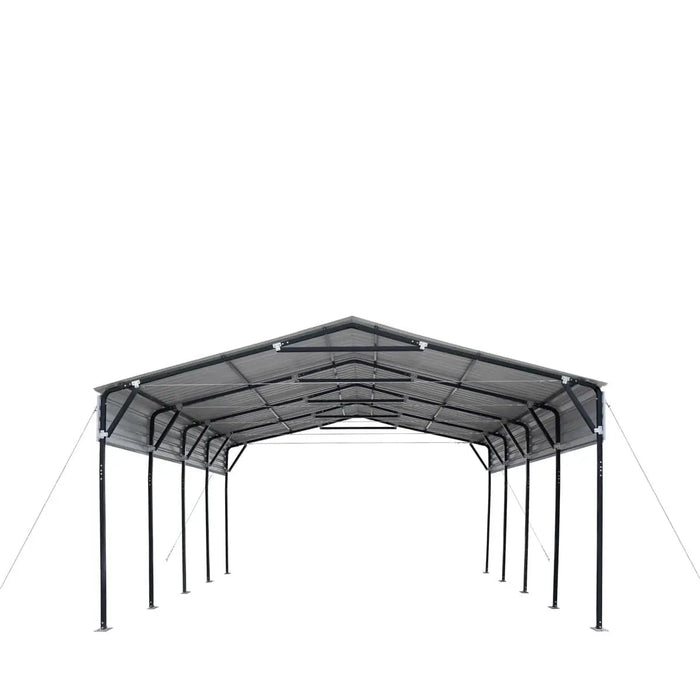

TMG Industrial 20’ x 20’ Metal Shed Carport, 10’ Open Sidewalls, 400 Sq-Ft, 27 GA Corrugated Panels, TMG-MSC2020
SKU TMG-MSC2020

TMG Industrial 20’ x 20’ Metal Shed Carport, 10’ Open Sidewalls, 400 Sq-Ft, 27 GA Corrugated Panels, TMG-MSC2020

$2,999.00
$2,999.00 - $2,999.00
$2,999.00
$2,699.00
$2,699.00 - $2,699.00
$2,699.00
Save $300.00 Save $300.00 CURRENTLY IN STOCK
FREE SHIPPING TO MOST LOCATIONS IN THE USA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial option:

1285.0 lb
87 x 38 x 15 inches
More Shipping Info
1-877-761-2819

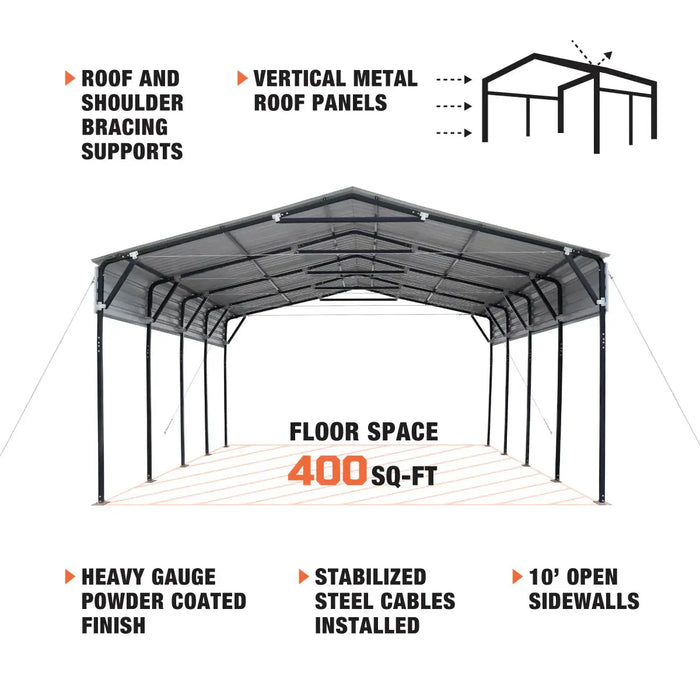

  • Vertical metal roof panels help snow slide and prevent water buildup

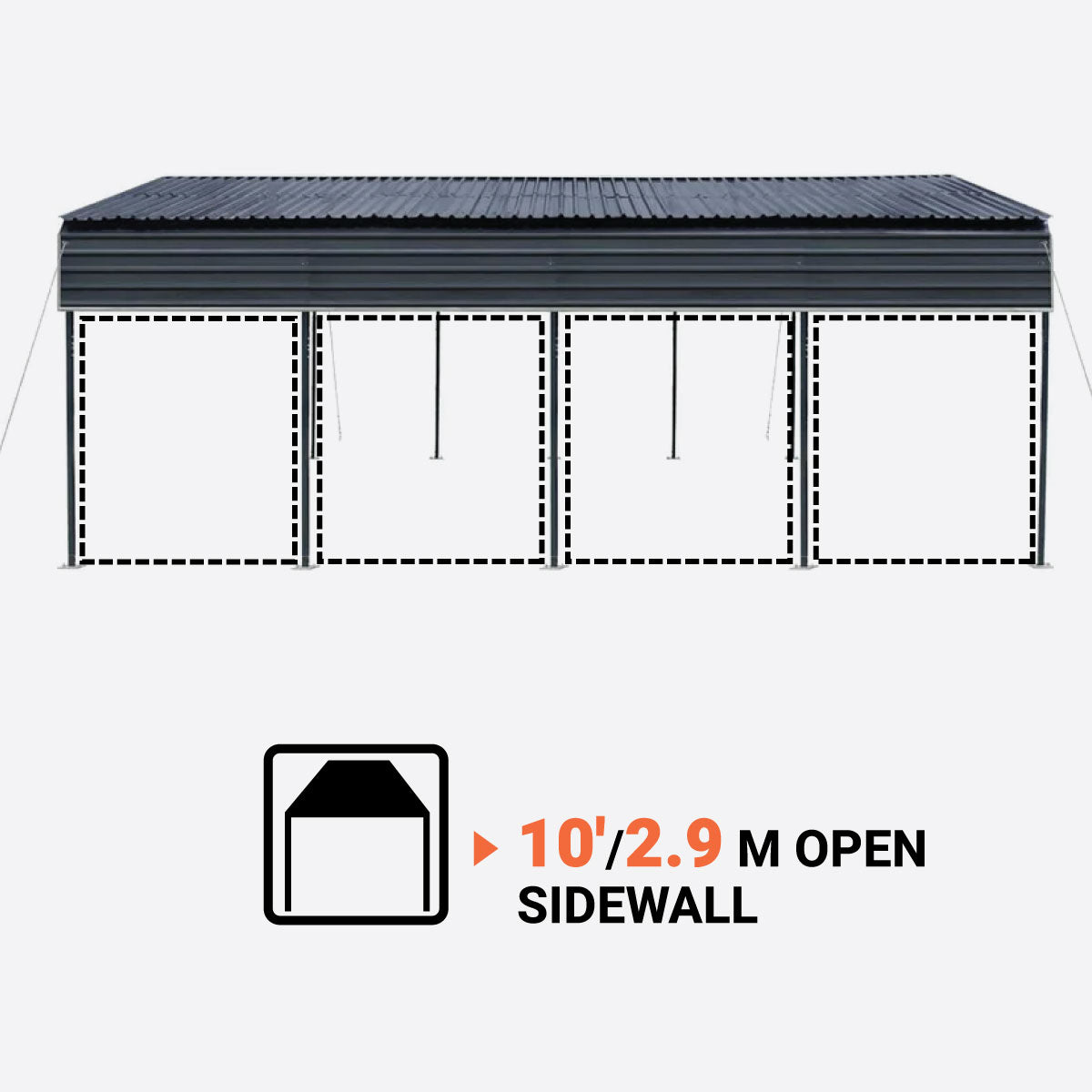

  • 10’ open sidewalls provide easy access and airflow from both sides
  • Roof and shoulder bracing supports added on all rafters
  • Stabilized steel cables installed for each rafter and on all four corners
  • Heavy-gauge galvanized metal roof panels with polyester paint coating
More Information
Product Manual
Find Parts
Features Specs Shipping Info Description Warranty Reviews

Features

  • Vertical metal roof panels help snow slide and prevent water buildup which decreases overall stress on the structure and reduces the risk of falling snow

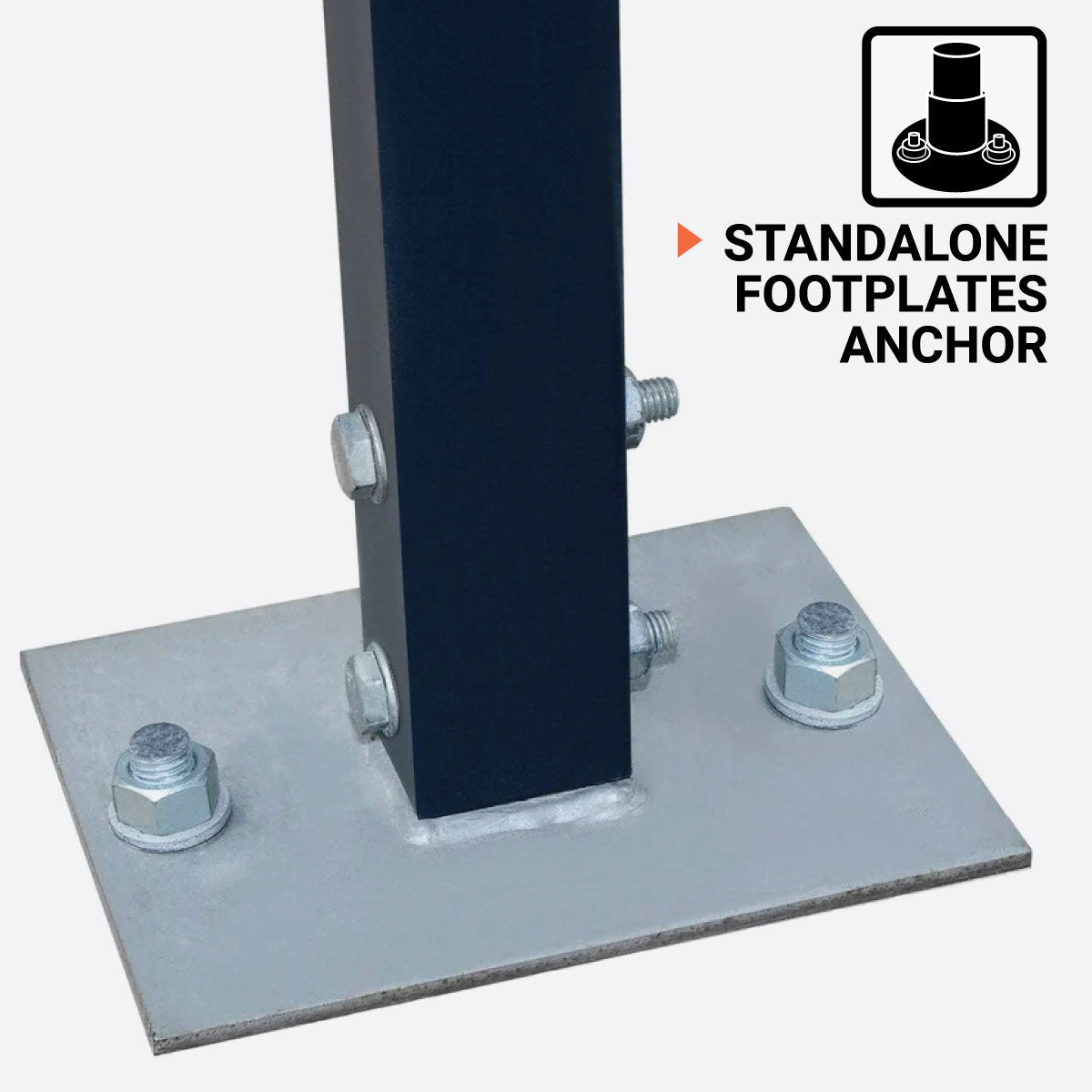

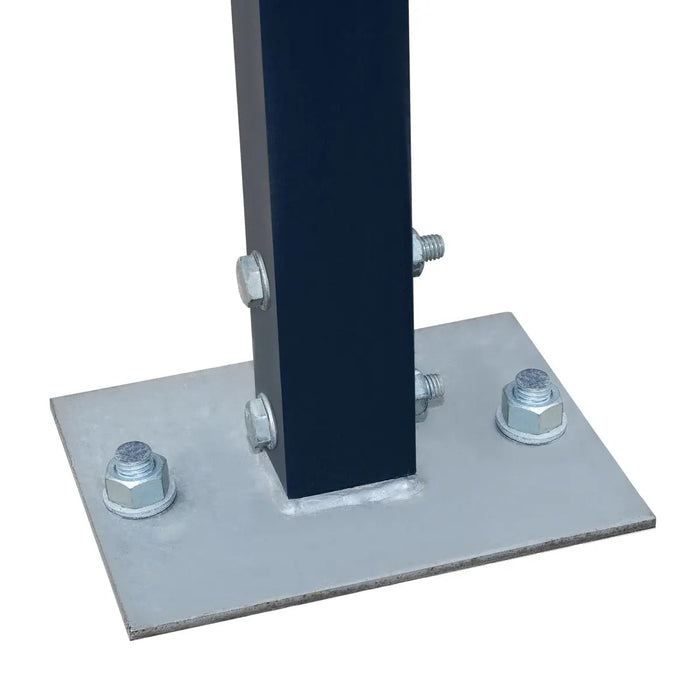

  • Standalone footplates anchor individually to the ground for superior support and overall structural integrity
  • 10’ open sidewall for easy access and airflow for working, moving things in and out or cleaning your car on beautiful days in the spring, summer and autumn
  • Heavy gauge powder coated finish for the whole steel structure means a dependable, long lasting carport that is highly resistant to rust, wear and corrosion

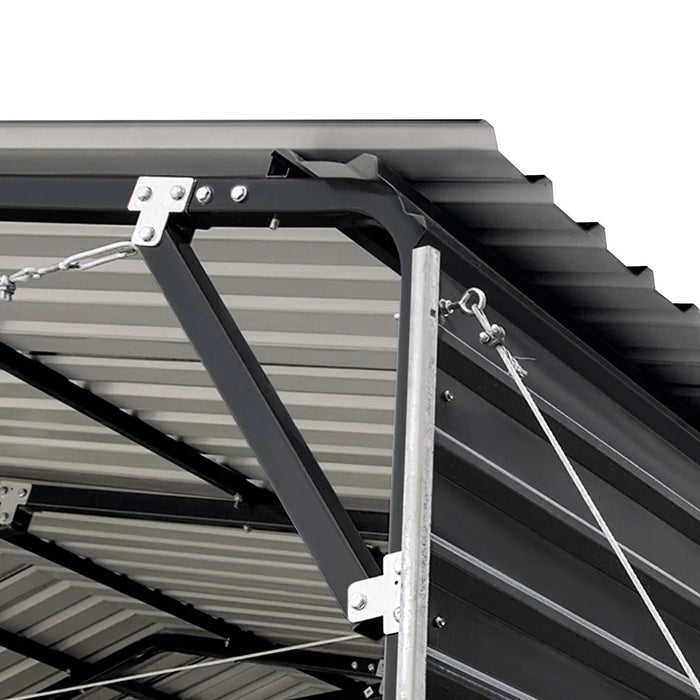

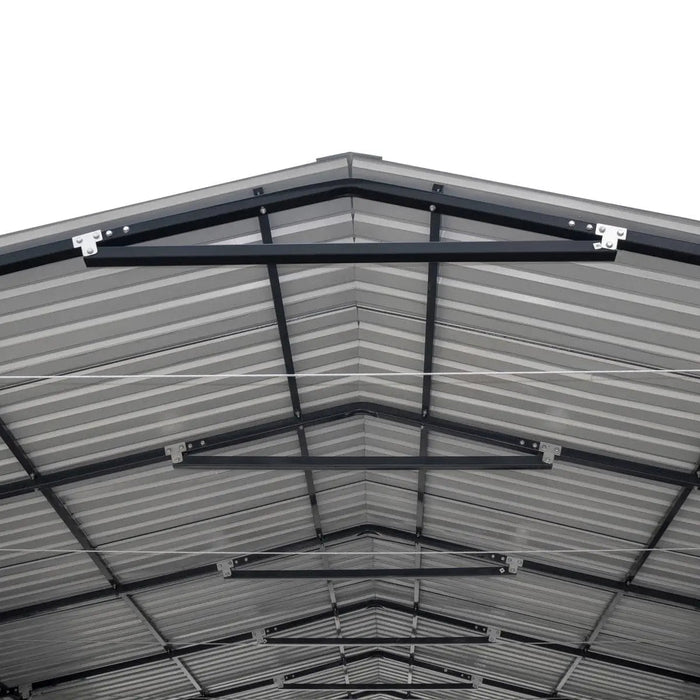

  • Roof and shoulder bracing supports added on all rafters for improved durability and weather resistance

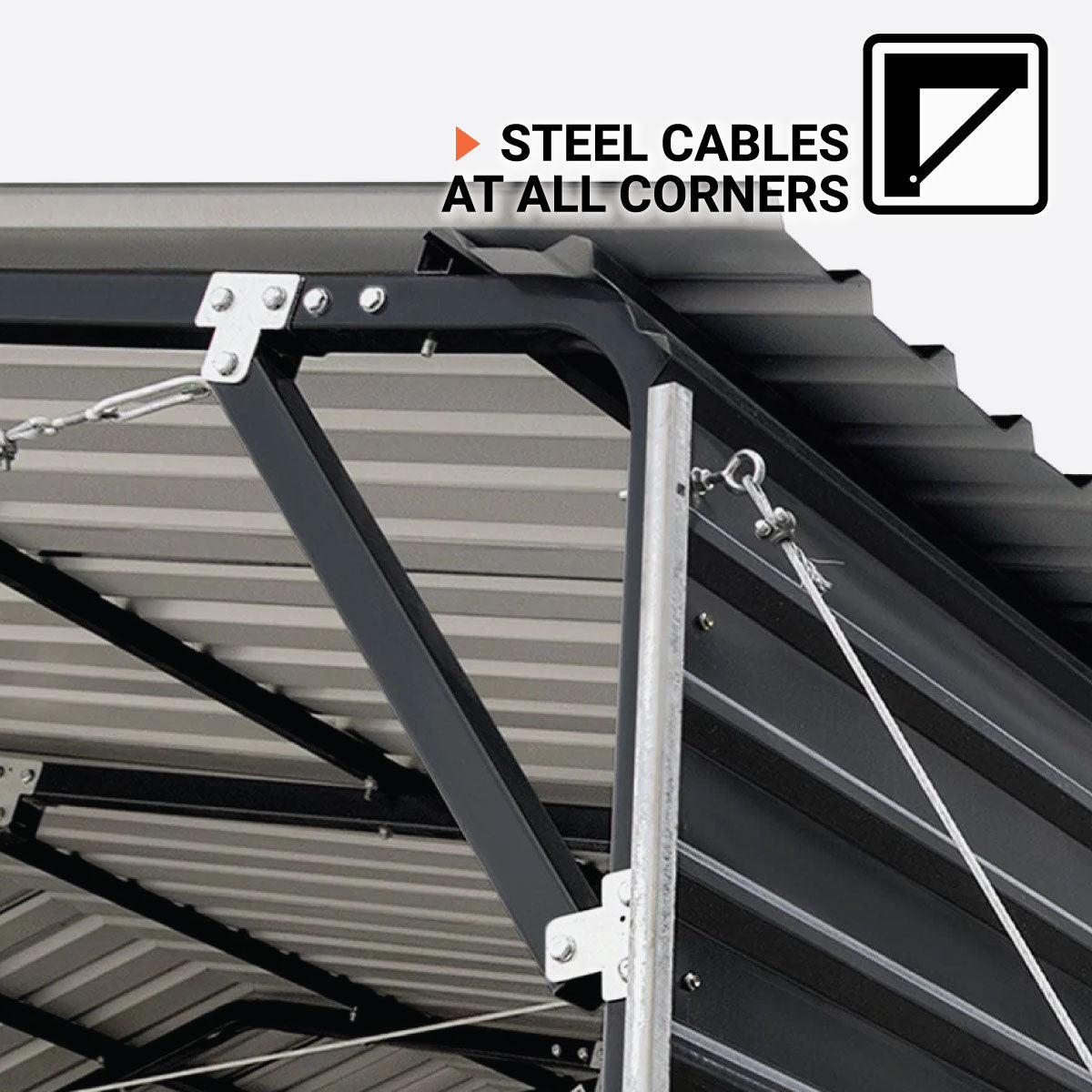

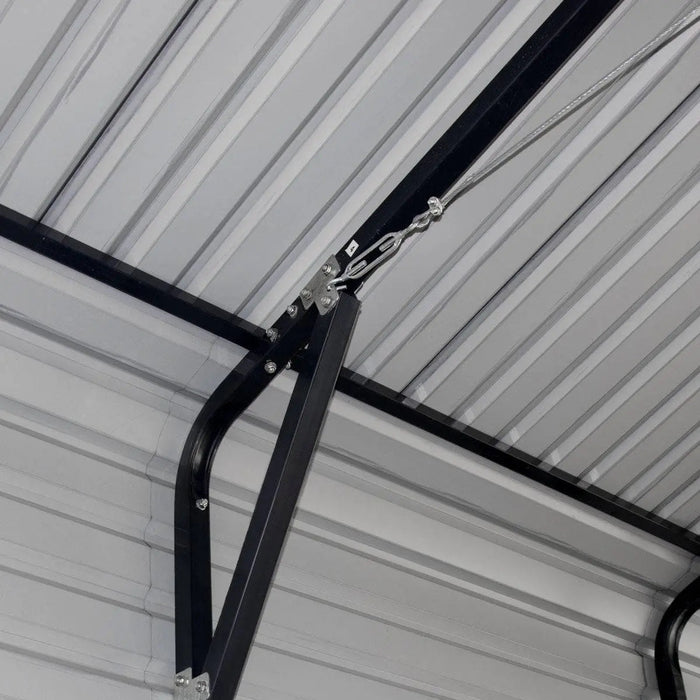

  • Stabilized steel cables installed for each rafter and on all four corners for extra stability and strength
  • Storage solution for your pickup, boat, RV, 4-wheelers and farming equipment that offers all season access and overhead protection
  • Easy and fast assembly: slide-fit frame and bolt-on connection; build it yourself with a couple of friends over a weekend
  • Heavy-gauge galvanized metal roof panels with polyester paint coating on the surface provides another layer of protection and corrosion resistance
TMG Industrial 20’ x 20’ Metal Shed Carport, 10’ Open Sidewalls, 400 Sq-Ft, 27 GA Corrugated Panels, TMG-MSC2020-description-image

Specifications

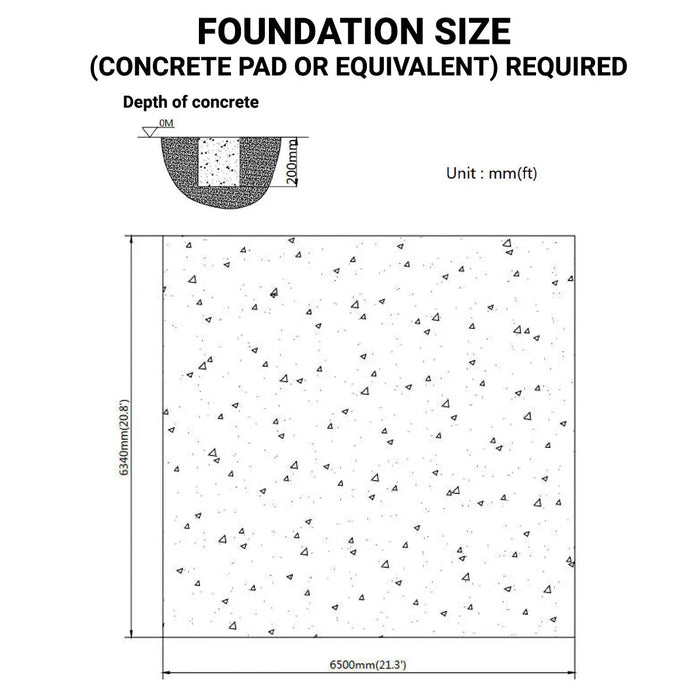

  • Foundation size required: 6340mm(20.8')(W) x 6500mm(21.3')

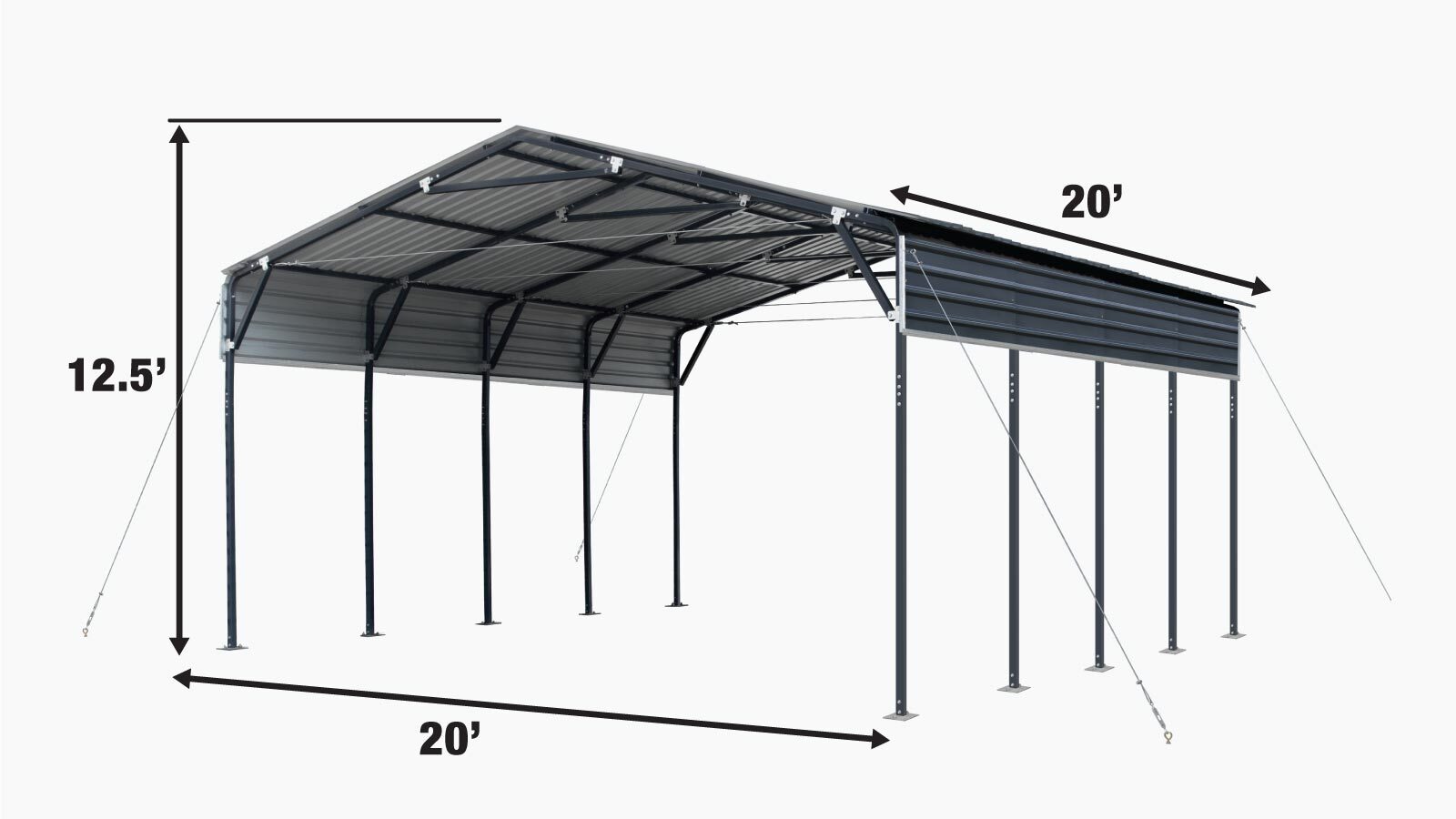

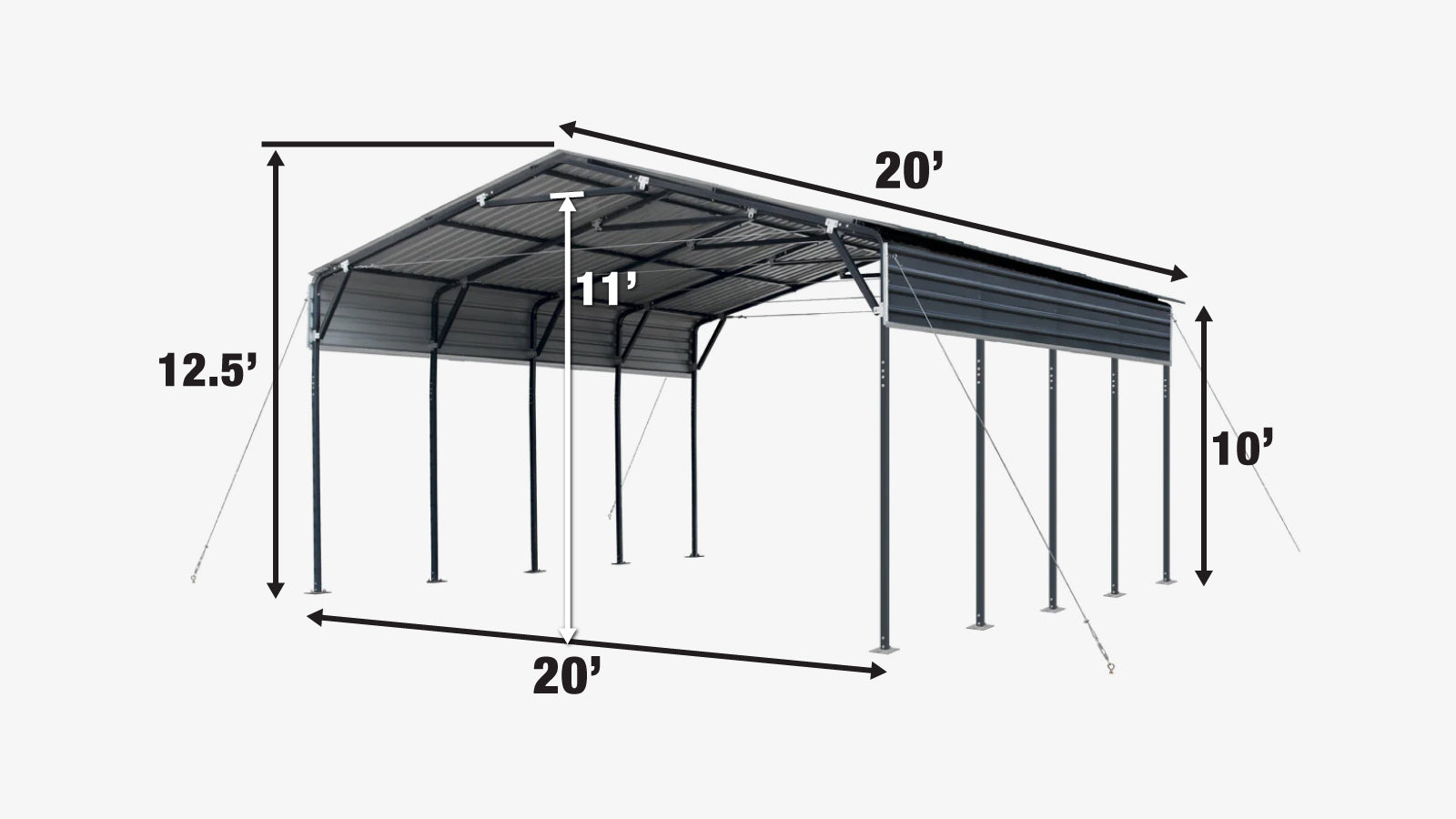

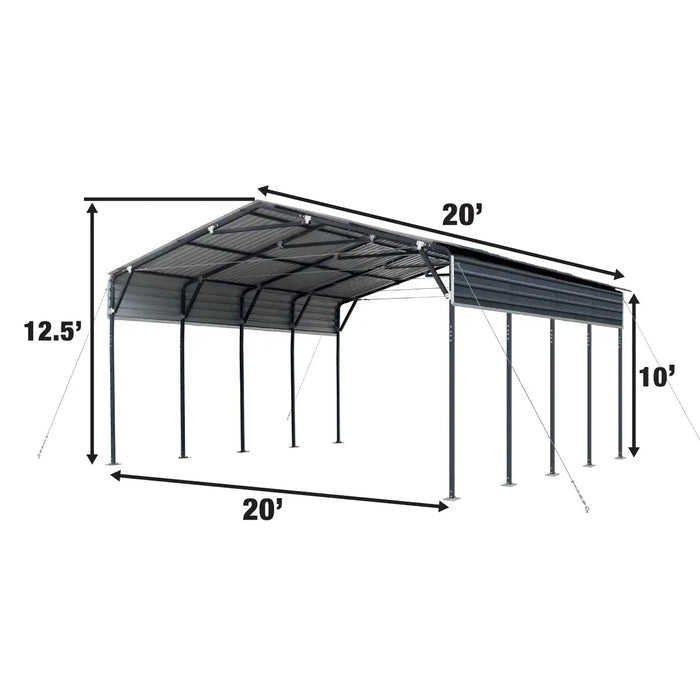

  • Assembled size: 20’ (L) x 20’ (W) x 12.5’ (H)

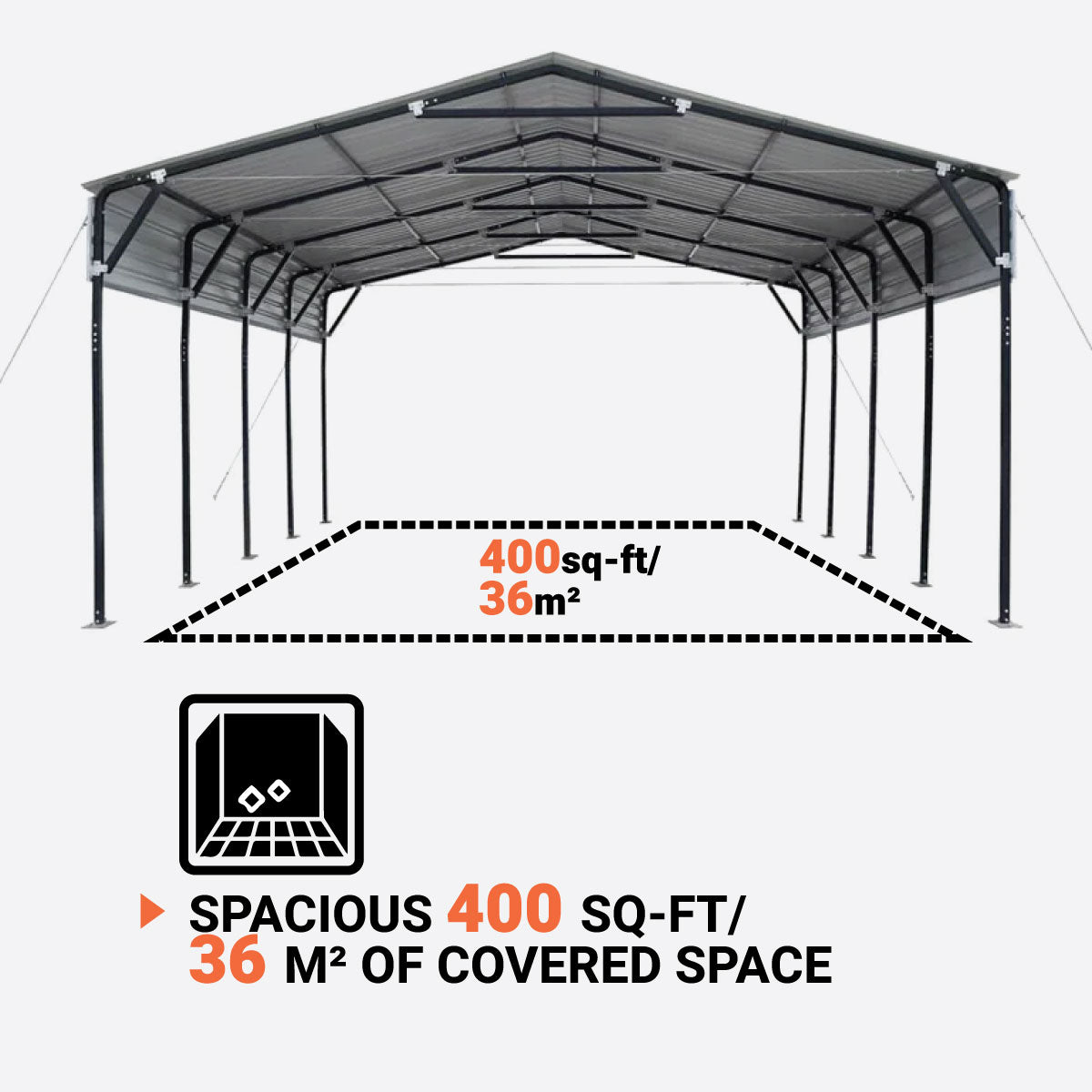

  • Floor space: 400 sq-ft (approx.)
  • Sidewall height: 10'
  • Peak height: 12.5’
  • Primary frame: 15 GA
  • Roof metal panel: 27 GA
  • Product weight: 1016 lbs
  • Reference snow load: 30 PSF
  • Reference wind load: 75 MPH
  • Charcoal grey metal roof panels and dark grey steel structure
  • Sleeve anchor bolts and other hardware included
  • Installation surface: Solid wood, concrete slabs or anything else with a solid base
TMG Industrial 20’ x 20’ Metal Shed Carport, 10’ Open Sidewalls, 400 Sq-Ft, 27 GA Corrugated Panels, TMG-MSC2020-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

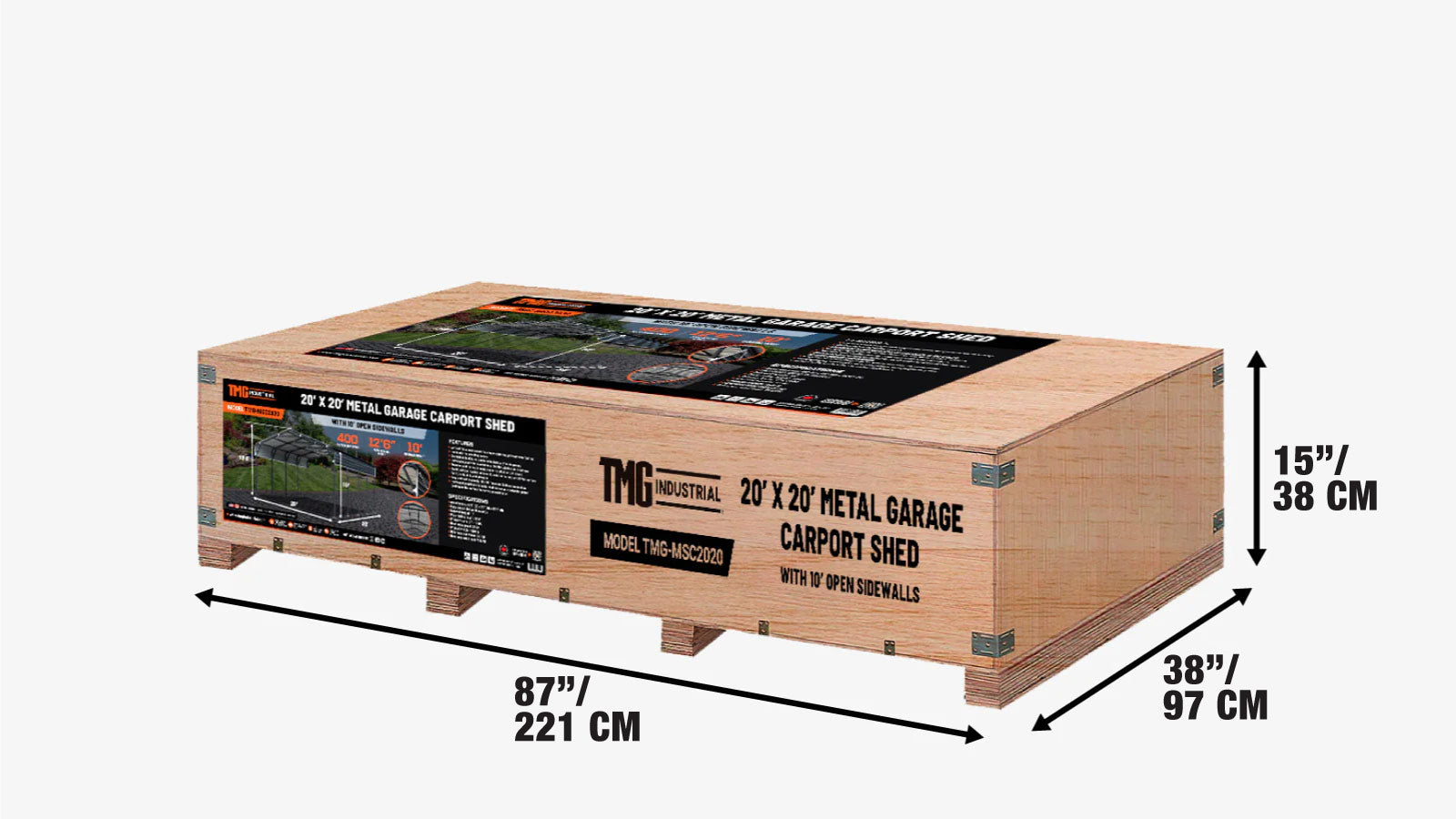

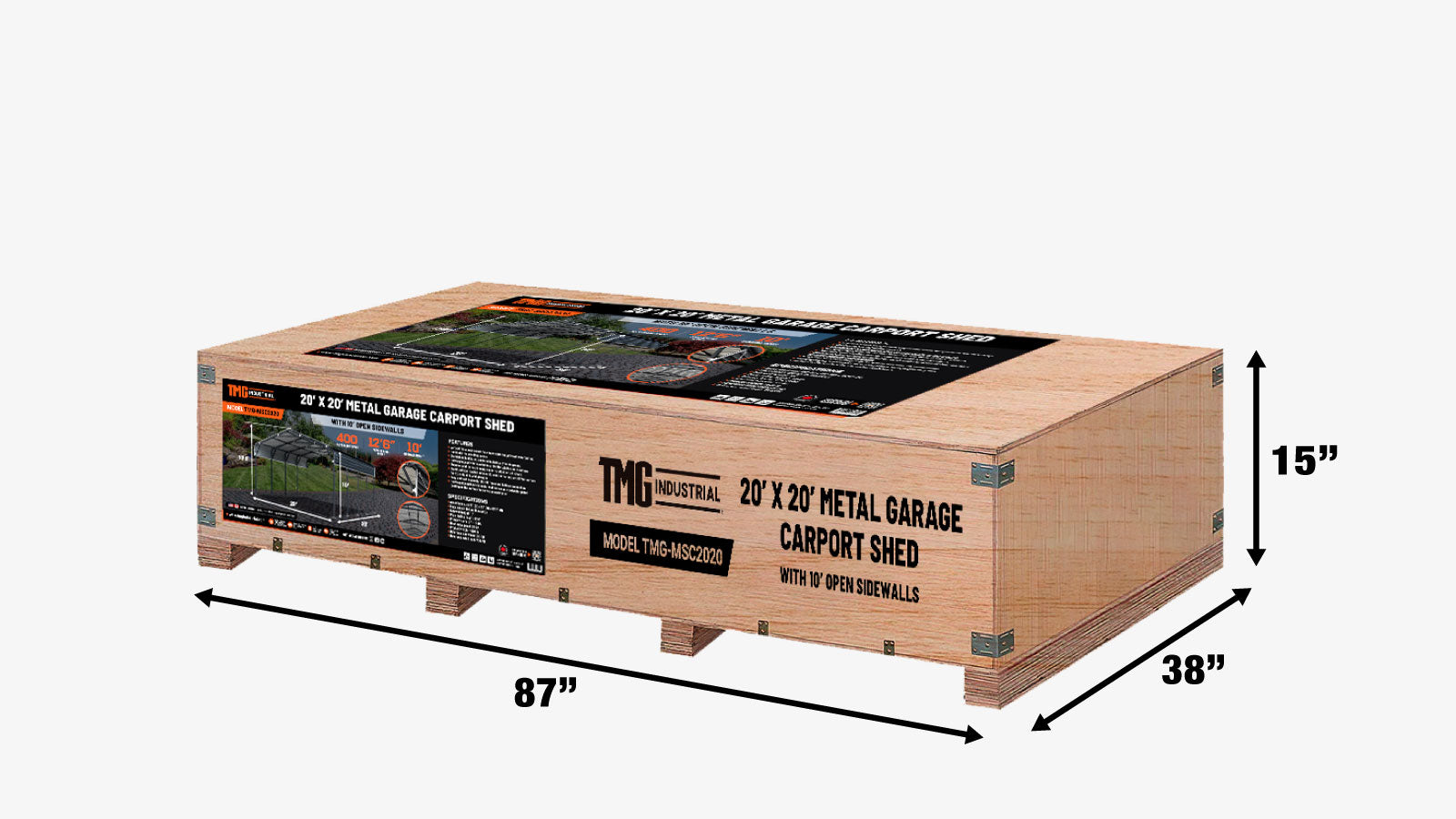

  • The prodcut is packed in a wood crate shipping box
  • Shipping dimension: 87” x 38” x 15” (L x W x H)
  • Shipping weight: 1285 lb
Shipping from one of our warehouses in the United States
What happens after you place your order?
TMG Industrial 20’ x 20’ Metal Shed Carport, 10’ Open Sidewalls, 400 Sq-Ft, 27 GA Corrugated Panels, TMG-MSC2020-shipping-info-image

Product Description

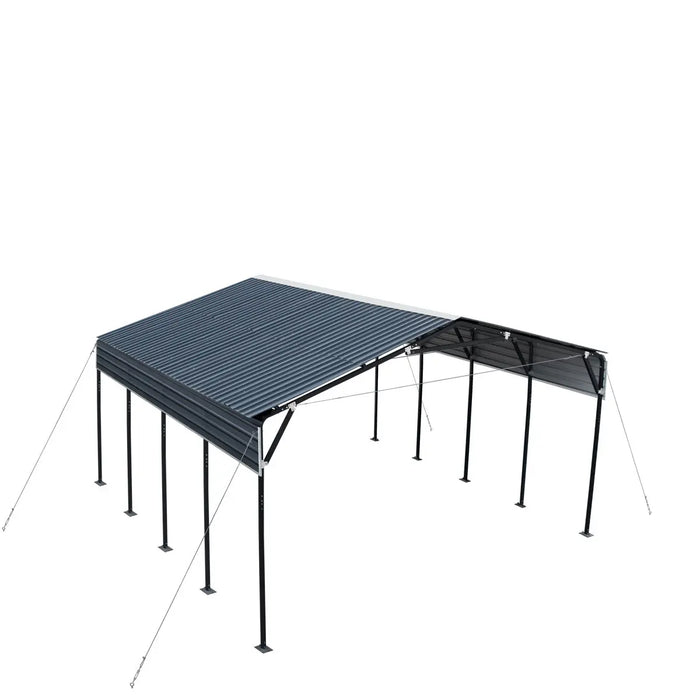

The TMG-MSC2020 Metal Shed Carport is your new trustworthy outdoor covered vehicle storage solution. Standalone foot plates that anchor individually into the ground provide superior support and overall structural integrity. 10’ open sidewalls accommodate the storage of your pickup, RV, boat, 4-wheelers or other farming equipment and offer all season access and overhead protection.

Over 1000 lb of heavy gauge galvanized metal with a powder coated finish protect this carport from the elements and make it highly resistant to rust, wear and corrosion. Robust metal roof and side panels have a surface polyester paint coating that provides another layer of protection which increases the lifespan and aesthetic quality. The vertical roof panels navigate moisture and help prevent snow buildup during the winter which decreases overall stress on the structure.

Quick assembly with an easy to build slide-fit frame and bolt-on connection provide a convenient, no-hassle startup that you can do yourself with a couple of friends. Approximately 400 square feet of covered space under a steel cable reinforced canopy that can be used to stockpile materials, park vehicles and do any type of outside work.

TMG-MSC2020 is upgraded to replace Model: TMG-CP2020. We also carry a larger model of this carport: TMG-MSC2030

Additional Info

TMG Industrial is a proud supplier of storage sheds, shelters, garages, and other portable structures around North America. These units are all sold as DIY installations. Due to varying regulations required by individual municipalities, TMG Industrial is not able to provide engineered drawings, or any snow and wind load certifications. It is up to the purchaser to determine any local requirements before purchasing.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
