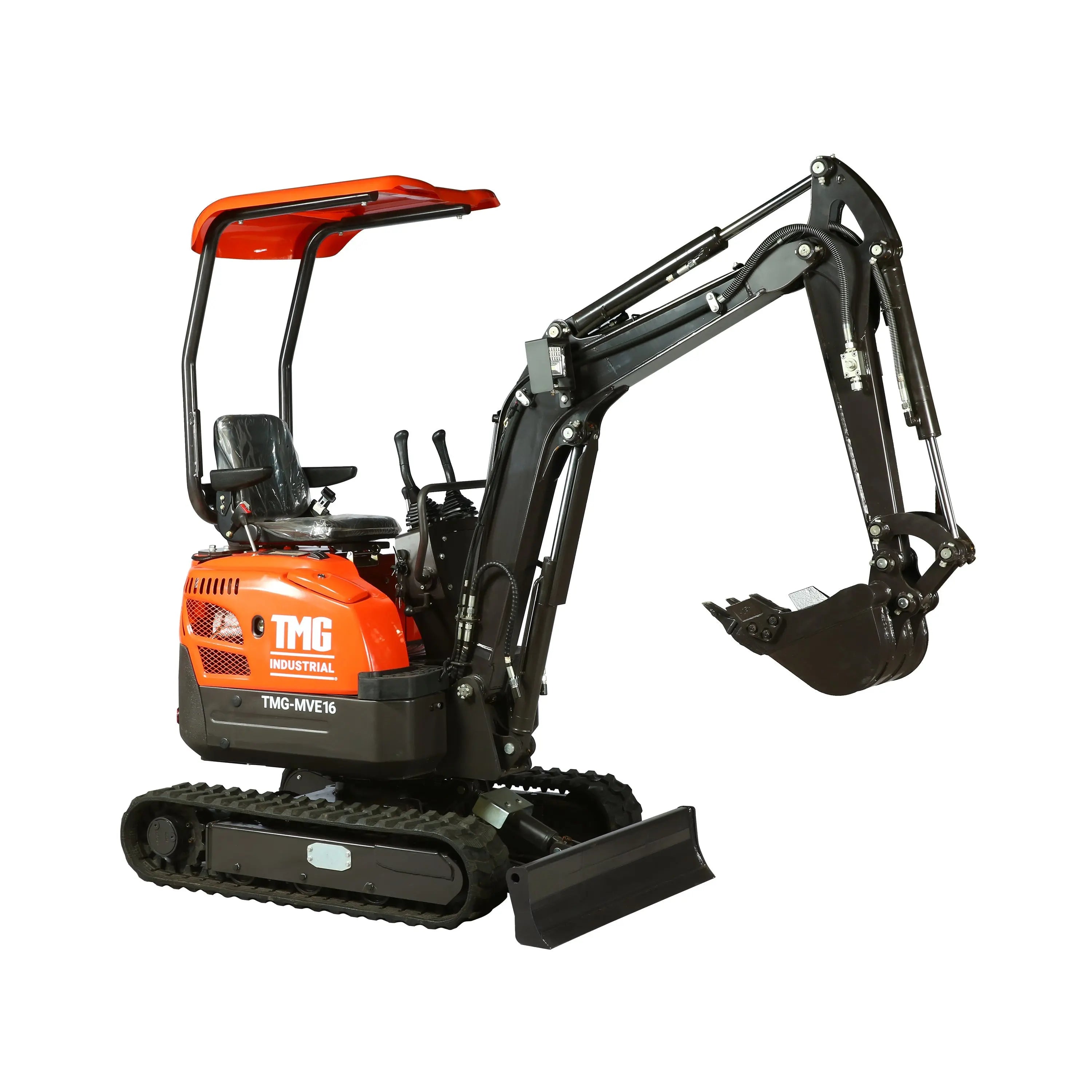

TMG Industrial 1600 KG Mini Compact Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 85” Digging Depth, TMG-MVE16
SKU TMG-MVE16

TMG Industrial 1600 KG Mini Compact Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 85” Digging Depth, TMG-MVE16

$0.00 - $0.00
$0.00
$22,999.00
$22,999.00 - $22,999.00
$22,999.00
CURRENTLY OUT OF STOCK
FREE SHIPPING TO MOST LOCATIONS IN THE USA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial option:

3390.0 lb
94 x 44 x 124 inches
More Shipping Info
1-877-761-2819
  • Powered by a reliable 16 HP Kubota D902-EF08 diesel engine
  • KDK hydraulic main pump & Eaton motor
  • Unmatched adaptability for incredible navigation
  • Max. digging depth of 85” & max. unloading height of 91”
  • Thoughtfully designed operator layout for comfort & efficiency
More Information
Find Parts
Features Specs Shipping Info Description Warranty Reviews

Features

  • 16 HP Kubota 3-cycle water-cooled diesel engine, ensures a potent combination of reliable performance and fuel efficiency
  • KDK hydraulic main pump and Eaton motor work together to ensure smooth and precise operation, minimizing downtime and maximizing productivity
  • With unmatched adaptability, this excavator offers unparalleled maneuverability in confined spaces, allowing operators to navigate tight job sites with ease
  • The operator area is thoughtfully designed for comfort and ease of operation, providing a spacious layout that reduces fatigue during long working hours
  • Standard auxiliary hydraulics open up a world of possibilities, empowering users to easily attach a variety of tools and attachments for different uses
  • Maximum travel speed of 3 km/h, maximum digging depth of 85”, and a maximum unloading height of 91” to accommodate a wide variety of tasks
  • The unmatched adaptability also offers a high level of protection against jobsite obstacles, providing safety to both operator and machine

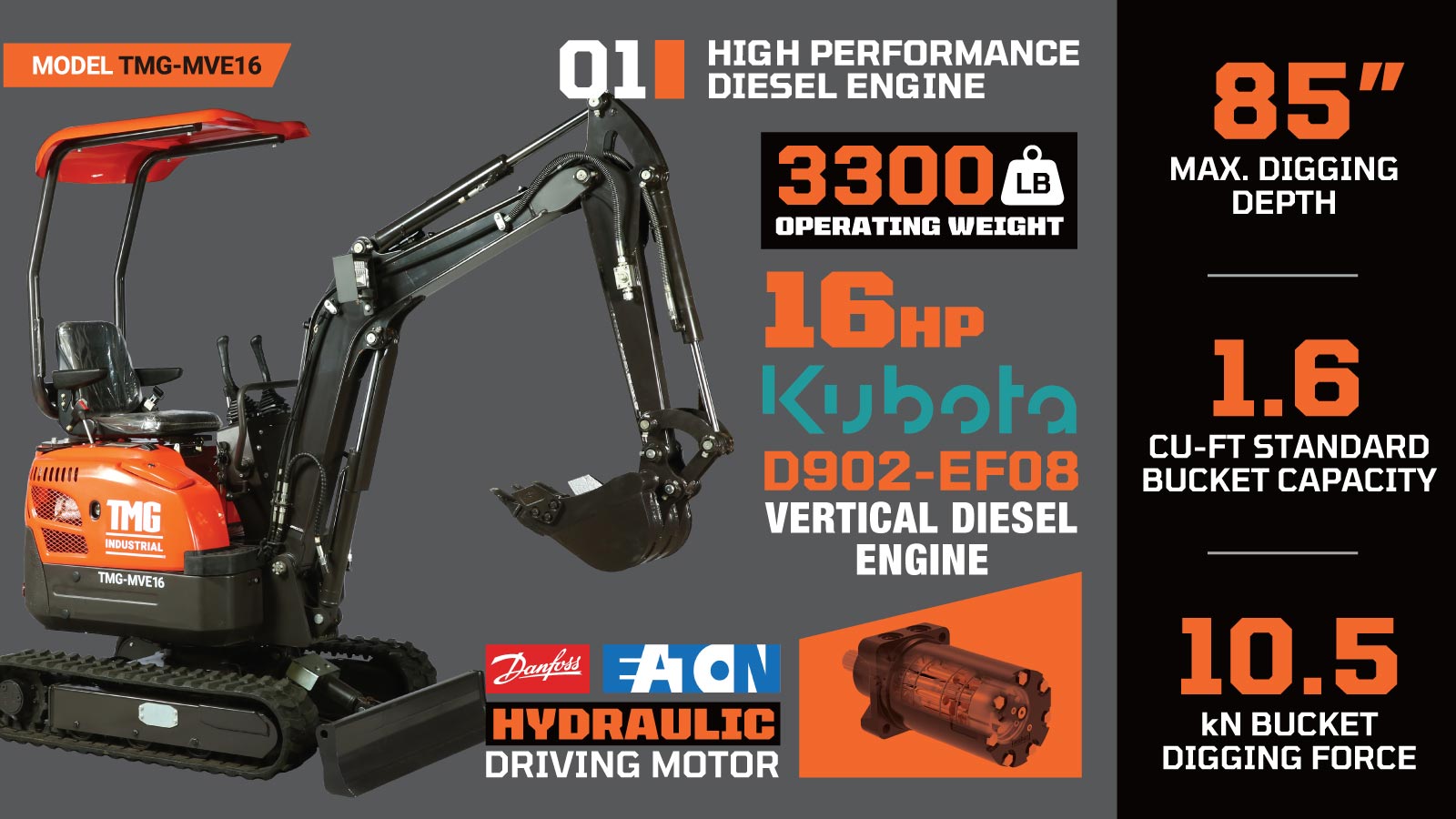

TMG Industrial 1600 KG Mini Compact Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 85” Digging Depth, TMG-MVE16-description-image

Specifications

  • Operating weight: 3300 lb
  • Standard bucket capacity: 1.6 cu-ft
  • Working device form: Backhoe
  • Max. travel speed: 3 km/h
  • Swing speed: 11 RPM
  • Max. gradeability: 30°
  • Track ground pressure: 35 kpa
  • Hydraulic oil tank capacity: 15 L
  • Fuel tank capacity: 19 L
  • Max. tractive force: 13.5 kN

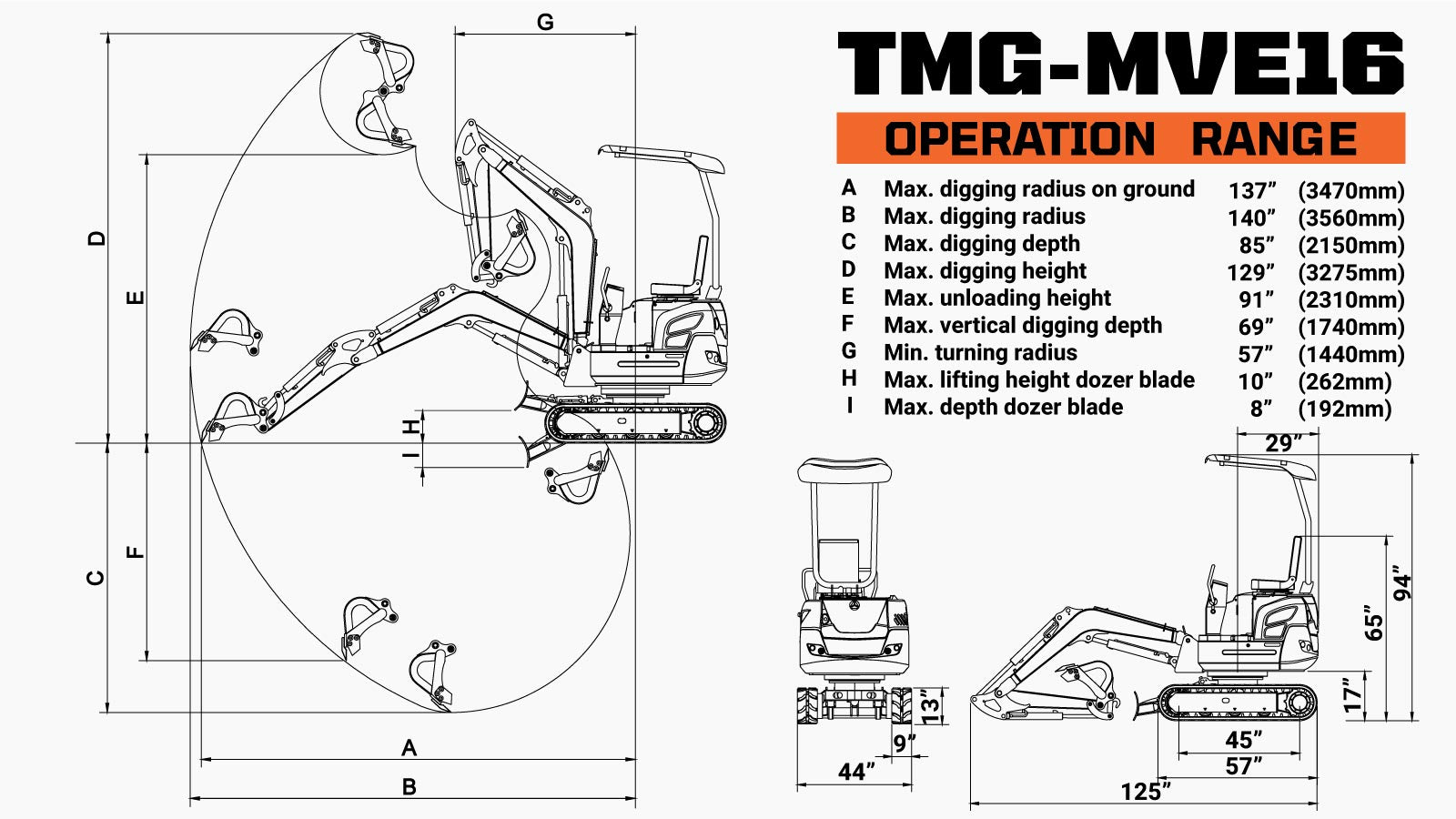

    • Operating Range

  • Max. digging depth: 85”
  • Overall operating height (fully raised): 129”
  • Max. digging radius: 140”
  • Max. unloading height: 91”
  • Max. vertical digging depth: 69”
  • Min. turning radius: 57”
  • Max. lifting height dozer blade: 10”
  • Max. depth dozer blade: 8”
  • Boom swing-left: 50°
  • Boom swing-right: 55°
  • Dipper boom digging force 6.5 kN
  • Bucket digging force 10.5 kN

    • Main Dimensions

  • Track length: 57”
  • Upper chassis ground clearance: 17”
  • Counterweight turning radius: 29”
  • Chassis width: 44”
  • Track width: 9”
  • Track height: 13”
  • Transportation length: 125”
  • Height of seat to ground: 65”
  • Overall height: 94”

    • Engine

  • Powerful 16 HP Kubota 3-cycle water-cooled diesel engine
  • Displacement: 0.898 L
  • Start type: Electric start w/battery included(12V/20A)
  • Rated power: 16 HP/2300 RPM
  • Max. torque: 51.3N.m
  • Engine oil capacity: 15.3 L
TMG Industrial 1600 KG Mini Compact Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 85” Digging Depth, TMG-MVE16-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United States Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

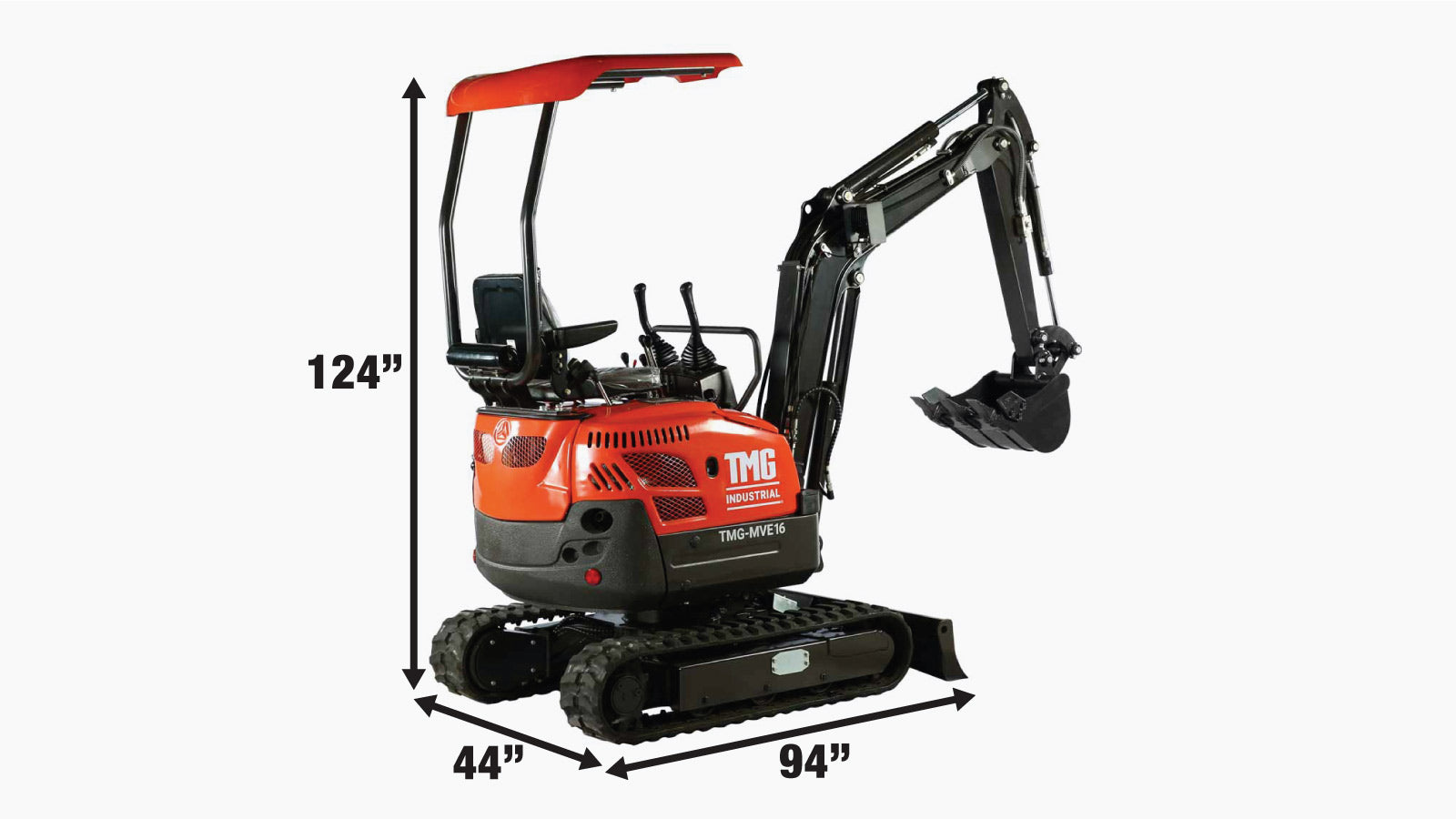

  • Shipping dimension: 94” x 44” x 124” (L x W x H)
  • Shipping weight: 3390 lb
Shipping from one of our warehouses in the United States
What happens after you place your order?
TMG Industrial 1600 KG Mini Compact Excavator, 16 HP Kubota Diesel, KDK Pump, Eaton Motor, 85” Digging Depth, TMG-MVE16-shipping-info-image

Product Description

The TMG-MVE16 Mini Compact Excavator is a robust and reliable powerhouse machine designed for efficient excavation in tight spaces. Equipped with an industry-proven 16 HP 3-cycle water-cooled Kubota diesel engine, this mini excavator offers optimal performance while meeting EPA standards. The KDK hydraulic main pump and Eaton motor contribute to its smooth operation and precise control.

With its unmatched adaptability, the TMG-MVE16 offers unparalleled flexibility in navigating job sites while providing maximum protection against obstacles. The spacious operator area is thoughtfully laid out for comfort and ease of operation, ensuring productivity throughout the workday. Standard auxiliary hydraulics empower the use of various attachments, enhancing the machine's versatility.

This mini excavator has a max travel speed of 3 km/h, a digging depth of 85”, and a maximum unloading height of 91”, making it ideal for a wide range of excavation tasks and work environments. With a compact design and dimensions tailored for maneuverability, this excavator is the go-to solution for precision projects on your farm or commercial job site.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
