TMG-ST4081V 40' x 80' Peak Ceiling Storage Shelter, Single Truss, 17oz Commercial Grade PVC Cover, 13' Wx 16' H Wide Open Door on Two End Walls
SKU TMG-ST4081V

TMG-ST4081V 40' x 80' Peak Ceiling Storage Shelter, Single Truss, 17oz Commercial Grade PVC Cover, 13' Wx 16' H Wide Open Door on Two End Walls

$17,999.00
$17,999.00 - $17,999.00
$17,999.00
$13,999.00
$13,999.00 - $13,999.00
$13,999.00
Save $4,000.00 Save $4,000.00 CURRENTLY IN STOCK
FREE SHIPPING TO MOST LOCATIONS IN THE USA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
Only 1 left in stock

Other financial option:

5181.0 lb
125 x 45 x 51 inches
More Shipping Info
1-877-761-2819
  • Arch wall peak ceiling roof to reduce snow buildup and increase wind resistance
  • Commercial grade 3-layer galvanized steel frame structure
  • Collar beams added on end trusses to increase stability
  • Ratchet strap system to secure the ground bars to the footplates
  • Dirt skirt on both long sides to protect against crosswinds
  • Commercial grade triple-layer ripstop polyvinyl chloride (PVC) cover:
    • Stands strong against tearing, leaking, and chemical corrosion
    • Resistant to flame, chemicals, and oil
    • UV protected and waterproof
    • Fabric color: white
  • Footplates with pre-drilled hole (anchor bolts not included)
  • Foundation required: concrete slabs or equivalent
  • Replacement covers available for order here TMG PARTS STORE
More Information
Product Manual
Find Parts
Features Specs Shipping Info Description Warranty Reviews

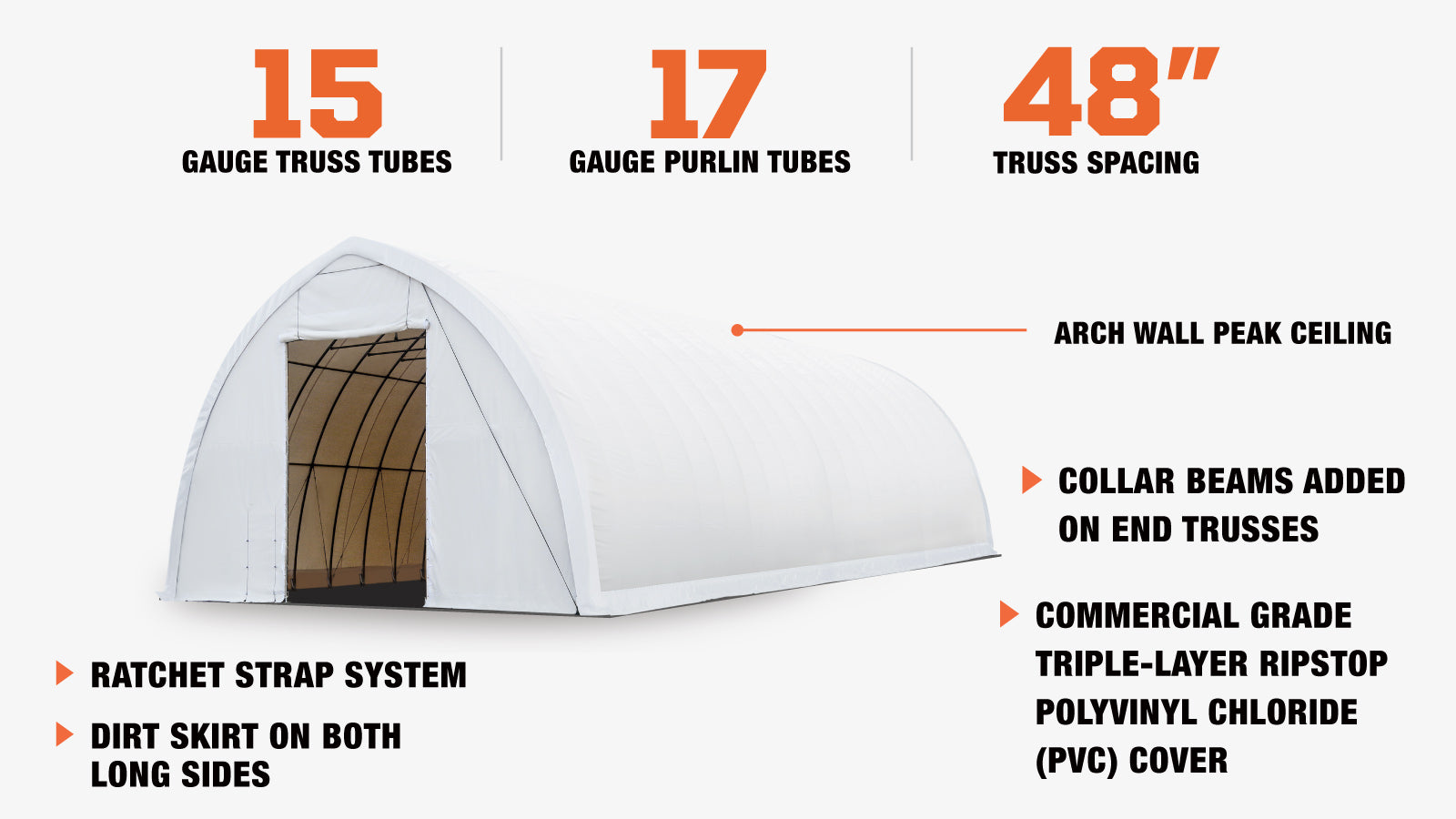

Features

  • Arch wall peak ceiling roof to reduce snow buildup and increase wind resistance
  • Commercial grade 3-layer galvanized steel frame structure
  • Collar beams added on end trusses to increase stability
  • Ratchet strap system to secure the ground bars to the footplates
  • Dirt skirt on both long sides to protect against crosswinds
  • Commercial grade triple-layer ripstop polyvinyl chloride (PVC) cover:
    • Stands strong against tearing, leaking, and chemical corrosion
    • Resistant to flame, chemicals, and oil
    • UV protected and waterproof
    • Fabric color: white
  • Footplates with pre-drilled hole (anchor bolts not included)
  • Foundation required: concrete slabs or equivalent
  • Replacement covers available for order here TMG PARTS STORE
TMG-ST4081V 40' x 80' Peak Ceiling Storage Shelter, Single Truss, 17oz Commercial Grade PVC Cover, 13' Wx 16' H Wide Open Door on Two End Walls-description-image

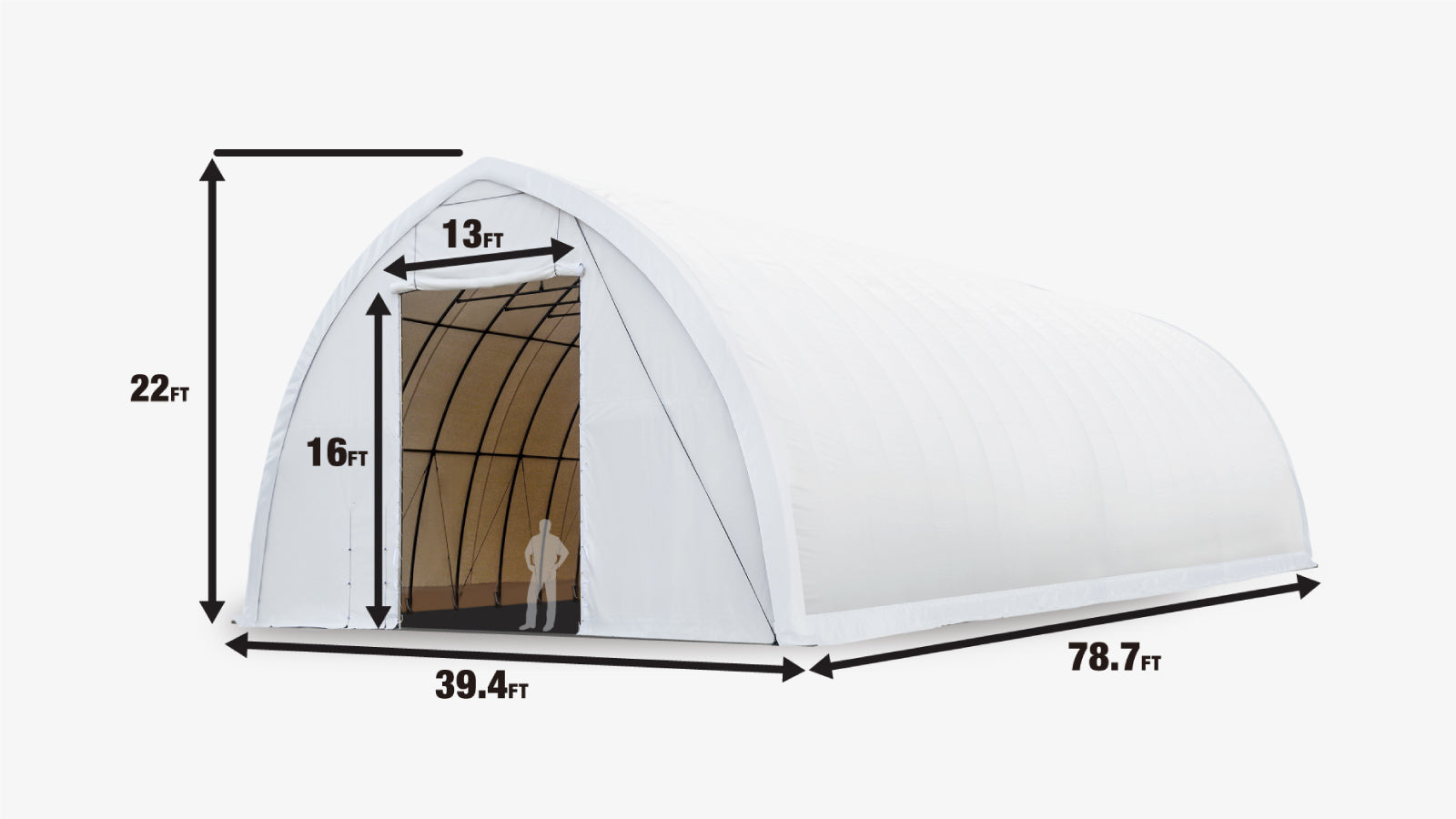

Specifications

  • Foundation size required: 12330mm(40.5')(W) x 24450mm(80.2')(L)
  • Truss spacing: 48’’
  • Truss quantity: 21 groups
  • Peak ceiling height: 22 ft
  • Truss tubes:   ⌀2.3” – 15 gauge (approx.)
  • Purlin tubes:   ⌀1.65” – 17 gauge (approx.)
  • Purlins on rafter: 147 of 7 rows
  • Door clearance: 13 ft (W) x 16 ft (H)
  • Cover material: 17 oz PVC 
TMG-ST4081V 40' x 80' Peak Ceiling Storage Shelter, Single Truss, 17oz Commercial Grade PVC Cover, 13' Wx 16' H Wide Open Door on Two End Walls-specifications-image

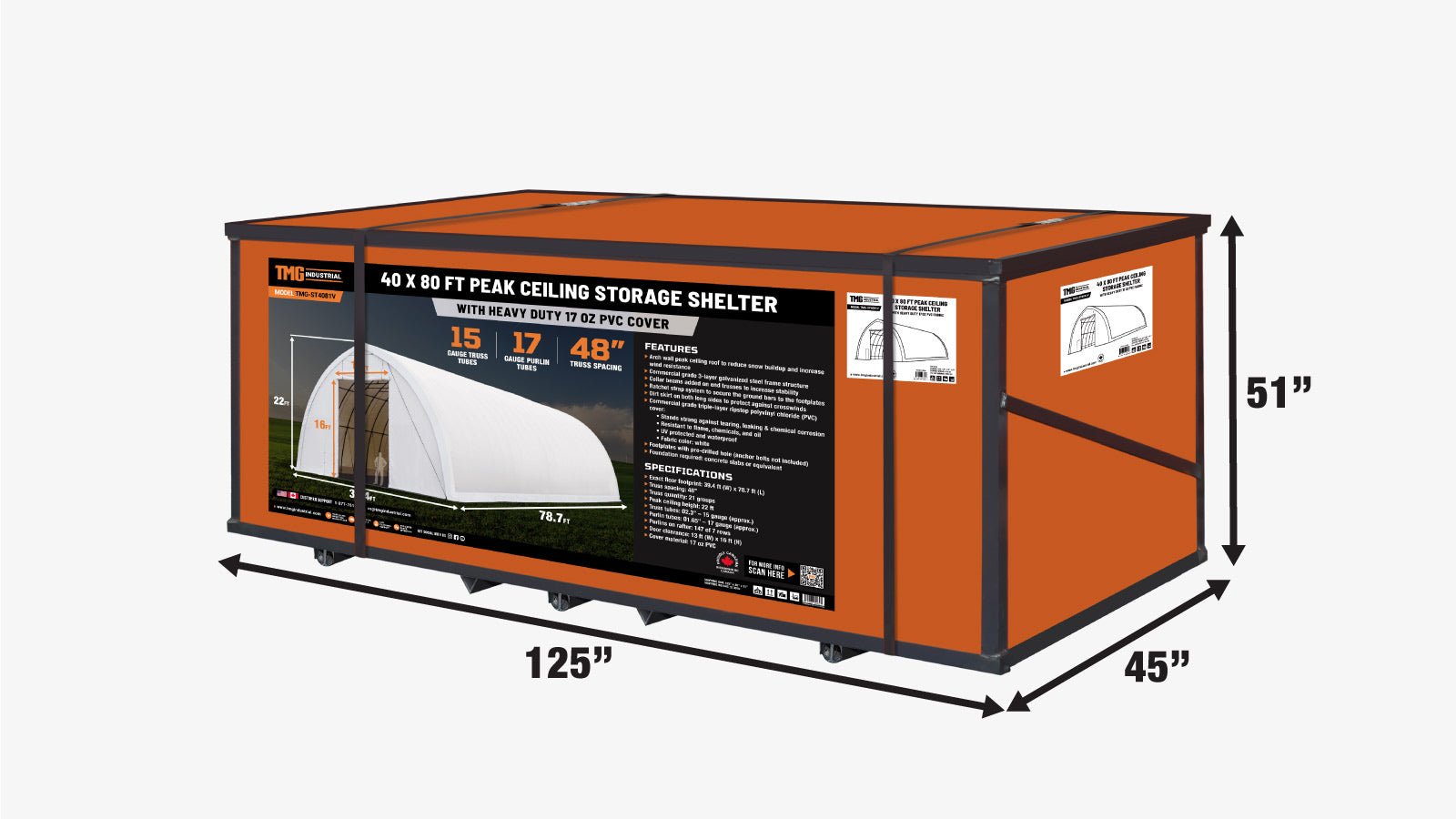

Shipping Information

  • Packed in one metal crate shipping box
  • Shipping dimension: 125'' x 45'' x 51''
  • Shipping weight: 5,181 lb
Shipping from one of our warehouses in the United States
What happens after you place your order?
TMG-ST4081V 40' x 80' Peak Ceiling Storage Shelter, Single Truss, 17oz Commercial Grade PVC Cover, 13' Wx 16' H Wide Open Door on Two End Walls-shipping-info-image

Product Description

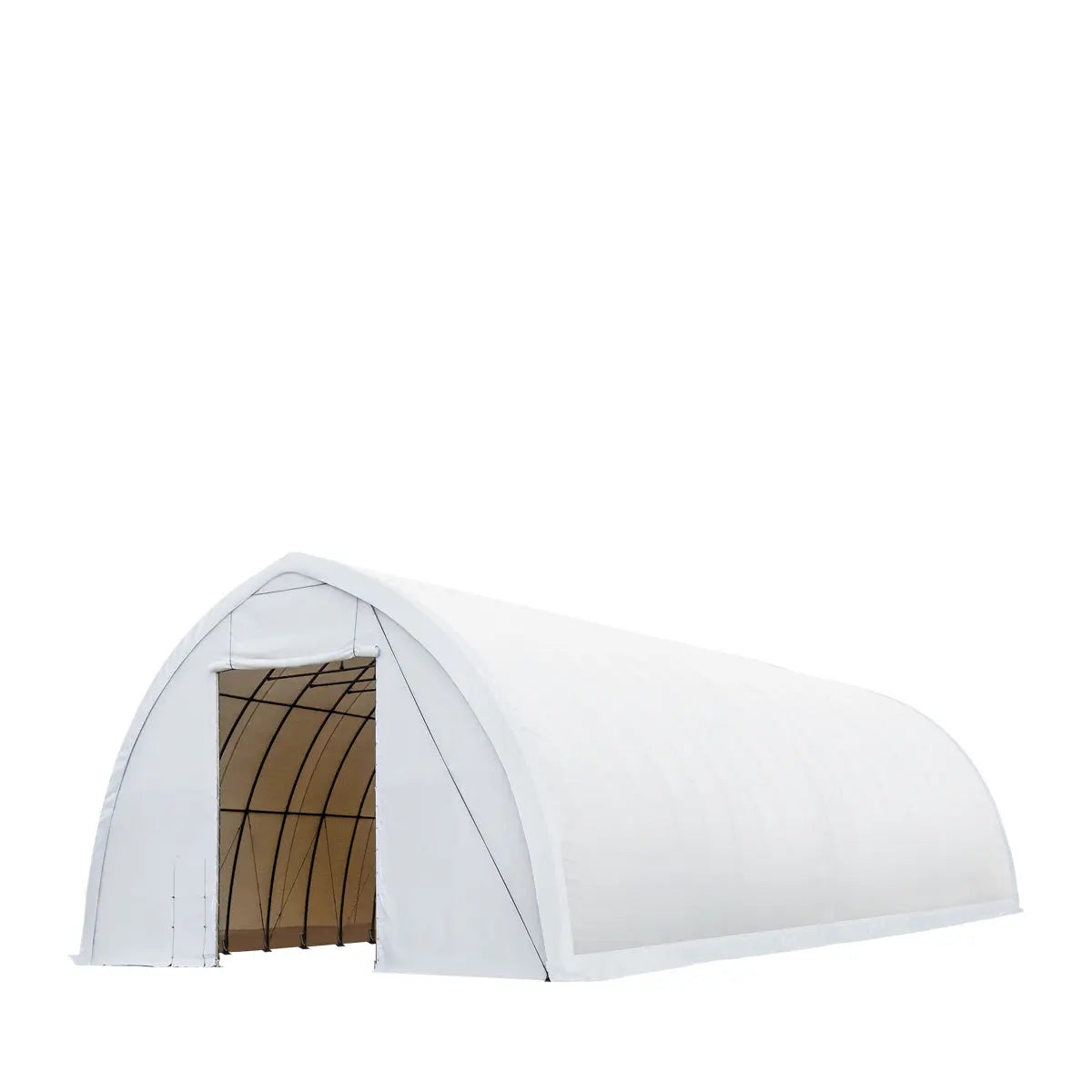

The TMG Industrial 40 x 80 ft Peak Ceiling Storage Shelter features a heavy-duty 17 oz PVC fabric cover that is treated to be fire retardant, UV resistant, and water-resistant. The peak style structure is made of commercial-grade galvanized steel tubes that are designed to be long-lasting and relatively easy to assemble. A dirt skirt along both long sides helps protect against crosswinds, giving this shelter increased durability. Both ends feature a door with an opening 13 ft wide by 16 ft high. This shelter is great for cars, SUVs, boats, and ATVs, as a small shop, for storing farm equipment, and much more.

This shelter is not engineered to handle snow and wind load, the engineering drawing is not available. If you live somewhere snow and harsh winters are a concern, please select our DUAL TRUSS SERIES shelters. 

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
